A/T AW55 - TCM DTC's 010A, 010B, 010C
NO: 43-49DATE: 04-06-2006
MODEL: S40, V50, S60, V70, XC70, S80, XC90 with AW55 Transmission
YEAR: 2004-2005
SUBJECT:
AW55 TCM DTC 010A, 010B, 010C Shift Solenoid S5 signal low, high or missing
DESCRIPTION:

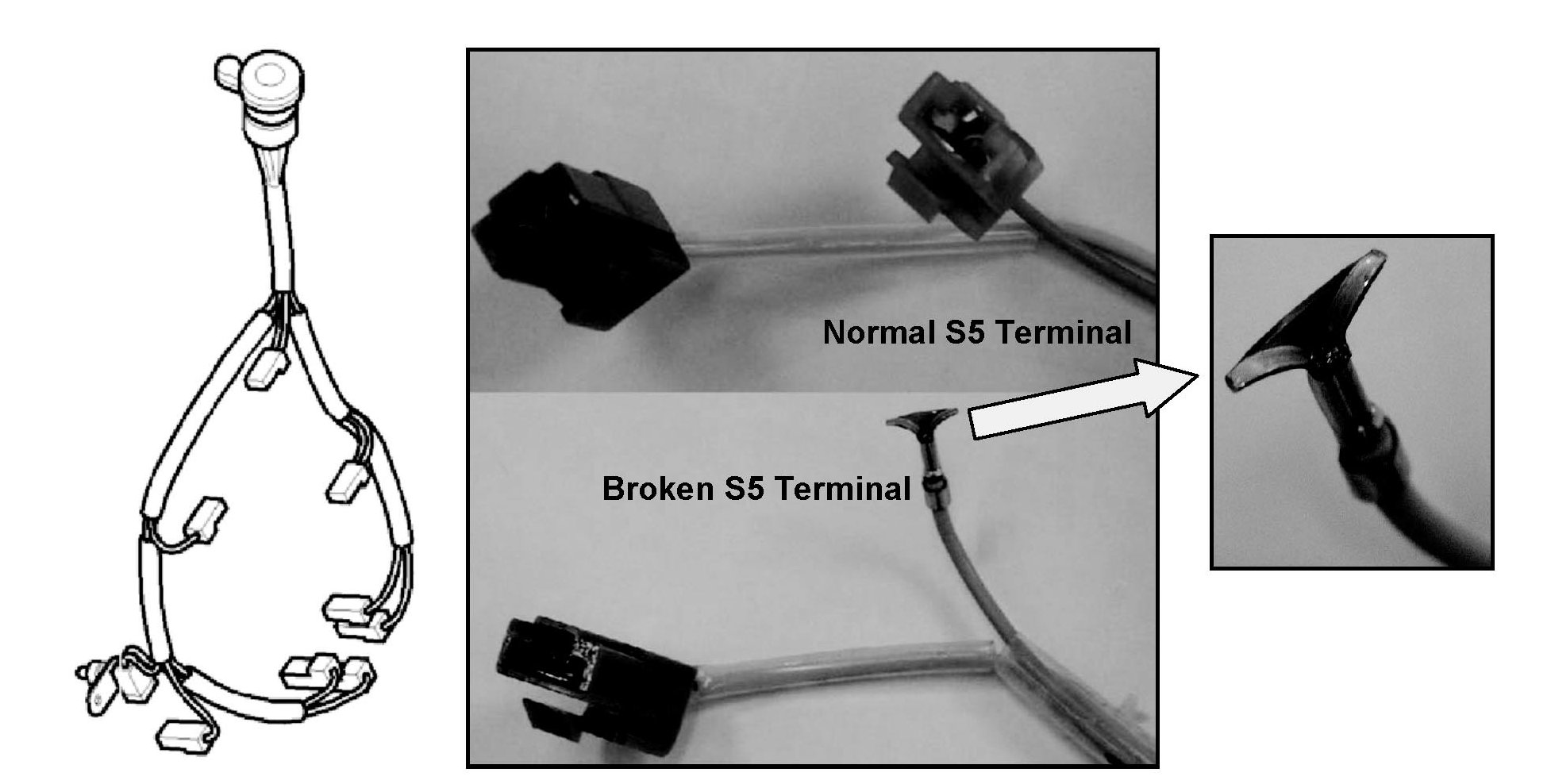

A likely cause for a DTC related to the S5 solenoid (010A, 010B, 010C) in the AW55 transmission on a model year 2004 or 2005 vehicle is a broken wiring terminal at the solenoid.
SERVICE:
Follow the VIDA fault tracing for these DTCs. Repair or replace the valve body wiring harness if necessary.
