Lighting - Halogen Headlamp Bulb Replacement Info.

Retailer Technical Journal 19636
Halogen Headlamp Bulb Replacements
Date: 9-03-2008

Reference: N/A

Note!
If using a printed copy of this Retailer Technical Journal, first check for the latest online version.

NOTE!
THIS DOCUMENT SUPERSEDES THE PREVIOUS TECH - NET NOTE 35-09 HEADLAMP BULB REPLACEMENTS, DATED 1-26-2004. S / V 40 (2000 - 2004) & C70 (1998 - 2004) MODELS HAVE BEEN REMOVED AND XC90 HAS BEEN ADDED. PLEASE UPDATE YOUR FILES.

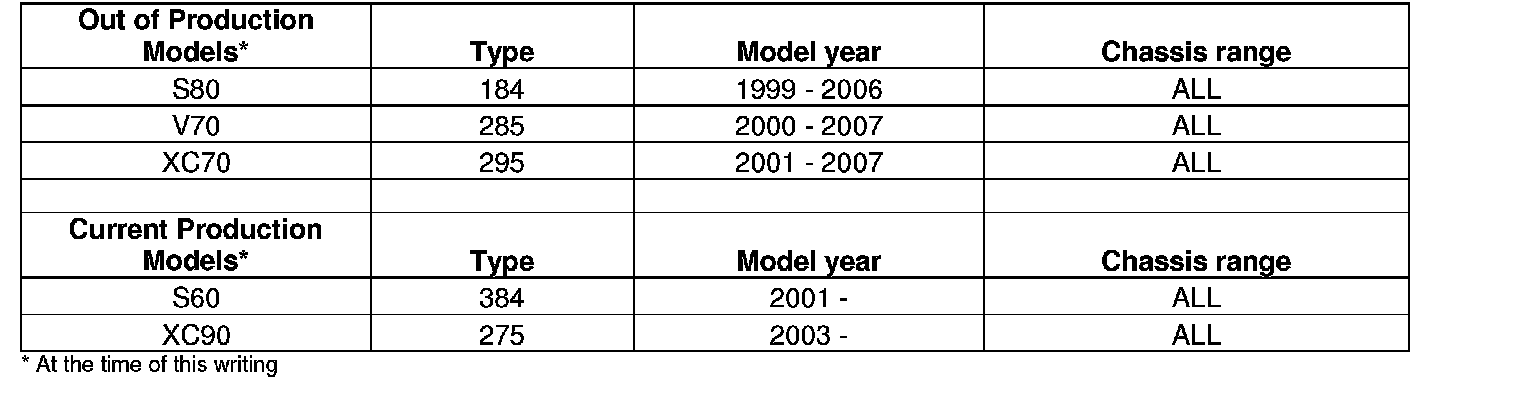

AFFECTED VEHICLES:

DESCRIPTION:

When replacing a failed halogen type low beam bulb on a vehicle, the low beam on the opposite side of the vehicle should also be replaced. When available, long-life halogen headlamp bulbs should be used.

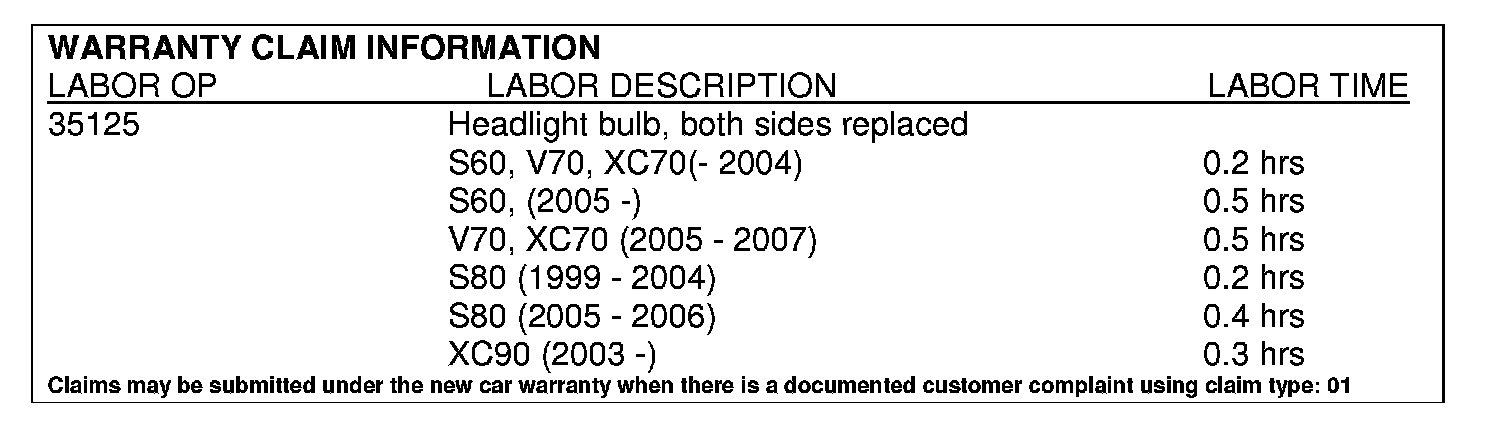

WARRANTY CLAIM INFORMATION
