High and Low Beam, Bi-Xenon



High and Low Beam, Bi-Xenon

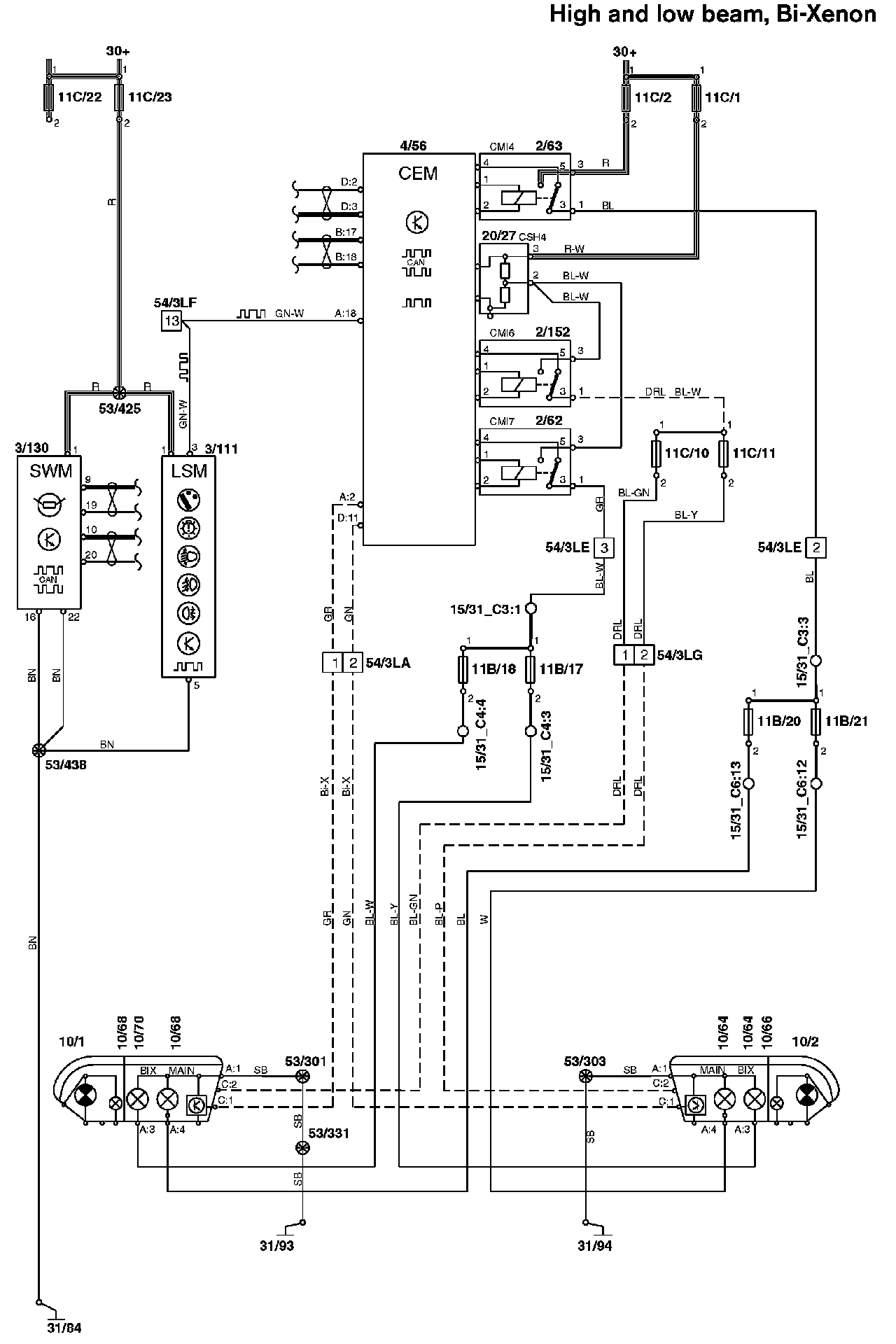

High And Low Beam, Bi-Xenon:






Diagram Legend: Diagram Legend

Wire Color Code and Other Abbreviations: Wire Color Code and Other Abbreviations
