Fog Lamps

Fog lamps






















Fog lamps

Note! This accessory requires software unique to the car.

Preparations and installation

- Move the left front seat to the rearmost position.




- Raise the car.

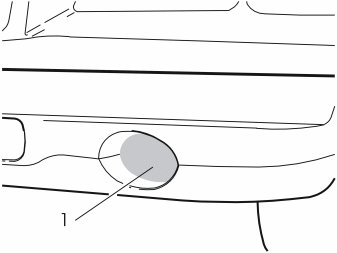

- Remove the cover (1) on the right and left-hand sides.

Applies to cars with air baffles on the left and right-hand sides





Remove:
- the screw (1) in the air baffle (2) on both sides.
- the air baffle by pulling backwards.




- Remove the screws (1). Remove the air baffle (2).
- Release the catches (3). Pull the air baffle backwards.
- Remove the air baffle.





Remove:

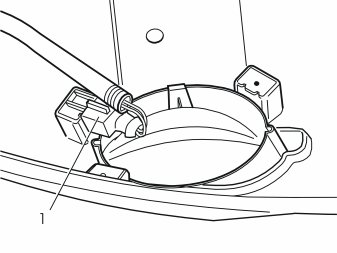

- the pre-routed connector (1) connector from the parking connector in the fog lamp mounting.
- the parking connector from the fog lamp mounting. This will not be reused.
- Repeat the operation on the other side.




- Install the spring nuts (1) in the holes on the left and right-hand sides.

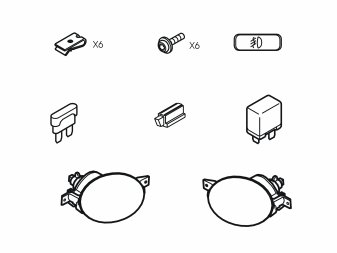

- Install the fog lamp on the right and left-hand sides. Use the screws (1) (from the kit).




- Connect the pre-routed connectors to the fog lamps on the right and left-hand sides.

Connection and finishing work

- Reinstall the air baffle (s), if applicable.
- Lower the car.




- Remove the cover (1) for the fuse holder.
- Install a 15A fuse in socket number 18.
- Reinstall the cover.





Remove:

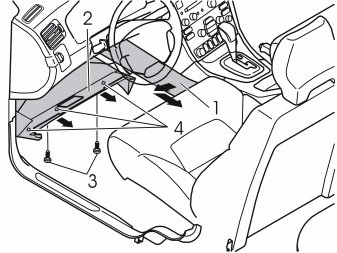

- the side panel (1). First slacken off the screw clip at the rear edge of the panel. Pull the panel outward and backward.
- the soundproofing panel (2). First remove the screws (3). Then pry off the soundproofing panel at the rear edge, where it is secured with three clips (4).





Install:
- the relay (1) from the kit in the relay holder socket marked MI11.
- the soundproofing panel and the side panel.




- Remove the cover (1) on the lighting control panel.
- Install the fibre optic (2) and the button (3) from the kit. Press the button into place
- Program the software according to the service information in VIDA.
- Check the function. Align the lamps.
