Accessory, Auxiliary Light

Accessory, Auxiliary Light

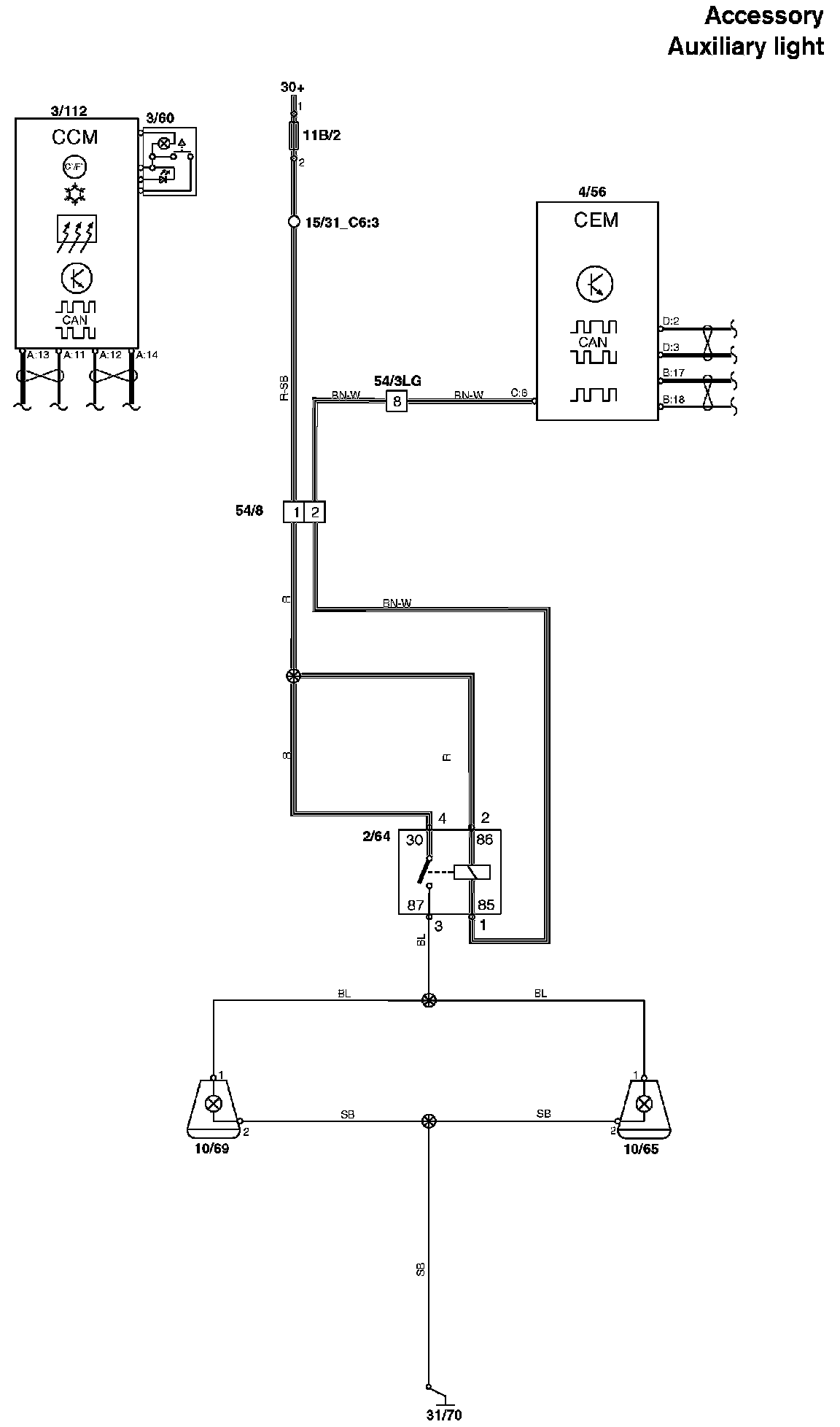

Accessory, Auxiliary Light:

Diagram Legend: Diagram Legend

Wire Color Code and Other Abbreviations: Wire Color Code and Other Abbreviations
