Glove Box Lamp: Service and Repair

Glove compartment lighting, replacing

Removal

Bulb holder and bulb

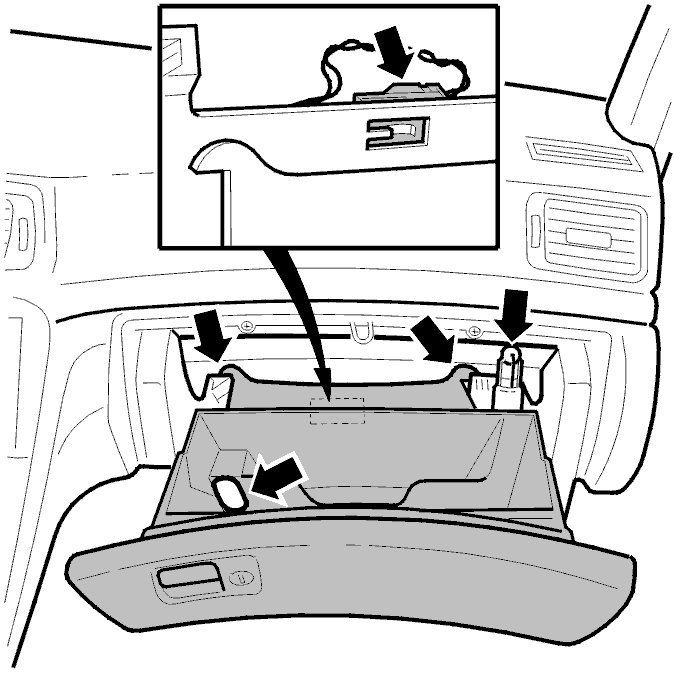

- Open the glove compartment. Remove the upper mounting for the strut from the ball mounting
- Release the stop lugs and allow the lid to hang
- Remove the bulb holder
- Remove the bulb
- Disconnect the connector from the mounting
- Separate the connector and thread through the hole
- Remove the bulb holder.

Installation

Bulb holder and bulb
In reverse order.

Note! Extend the strut to the lock position before installing.
