Safety Lighting

Safety Lighting

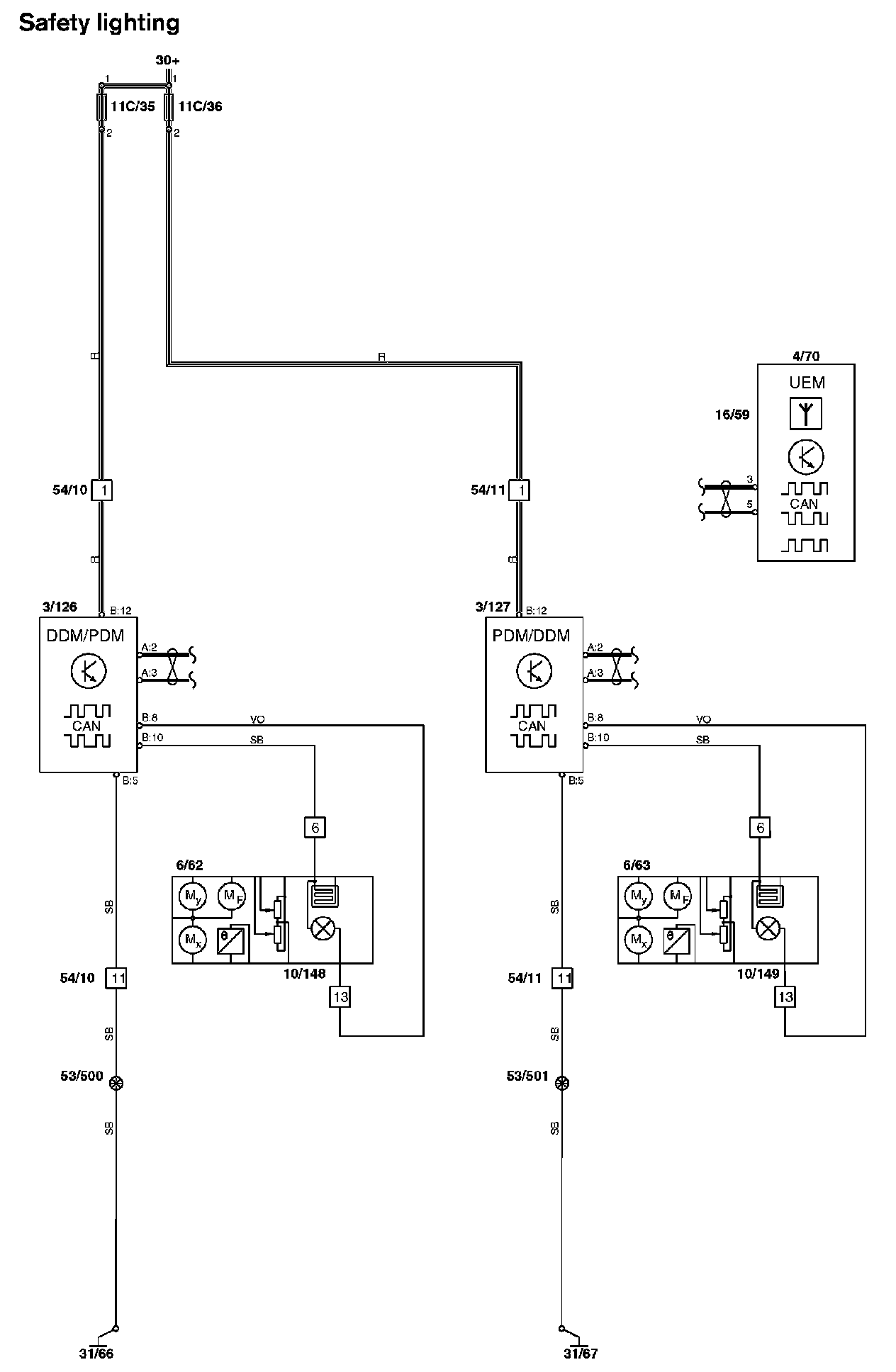

Safety Lighting:

Diagram Legend: Diagram Legend

Wire Color Code and Other Abbreviations: Wire Color Code and Other Abbreviations
