Instruments - Erratic Trip Meter Operation On DIM

NO: 37-27
DATE: 3-12-2004
MODEL/YEAR: 2004 S80, S60, V70, V70XC, XC90
SUBJECT: Driver Information Module Software
REFERENCE: VADIS Software Manager

DESCRIPTION:

Trip meters T1 and T2 in the Driver Information Module (DIM) may simultaneously reset to zero without driver command in model year 2004 S80, S60, V70, V70XC, and XC90 vehicles produced from structure week 200310 through structure week 200408.

Driver Information Module upgrade software has been developed to correct this concern.

To correct Trip Meter reset, if reported on vehicles within the structure weeks above, order and download DIM Upgrade software product 30677020 using normal VADIS routines.

Driver Information Module illumination (LED brightness level) will also be increased in conjunction with DIM upgrade software if no previous DIM upgrade has been performed.

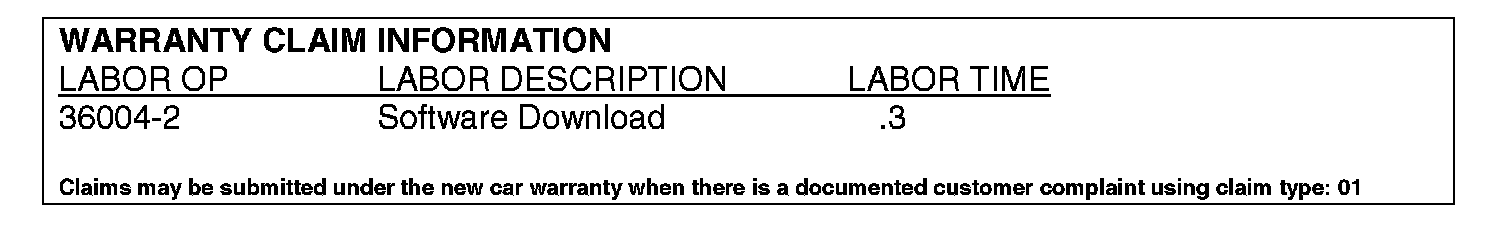

WARRANTY CLAIM INFORMATION
