Engine Block, Installing Components

Engine block, installing components

Note! As the illustrations in this service information are used for different model years and / or models, some variation may occur. However, the essential information in the illustrations is always correct.

Note! For tightening torques, see Tightening torque Tightening Torque.

Installing the components for the engine pad
- the thermostat housing
- knock sensor (KS)
- flame trap
- the pipe screw for the water-heated crankcase ventilation.
If in doubt about the order of assembly, see Engine body, exposing Engine Body, Exposing.

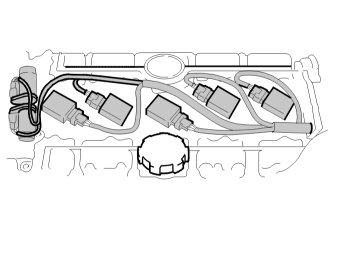

The direction of the ignition coil and the wiring routing is illustrated.

Installing the flywheel and carrier plate
Install the flywheel. Service and Repair
Install the carrier plate. Service and Repair
