Home >> Volvo >> 2004 >> S60R AWD L5-2.5L Turbo VIN 52 B5254T4 >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Locations

Engine: Locations

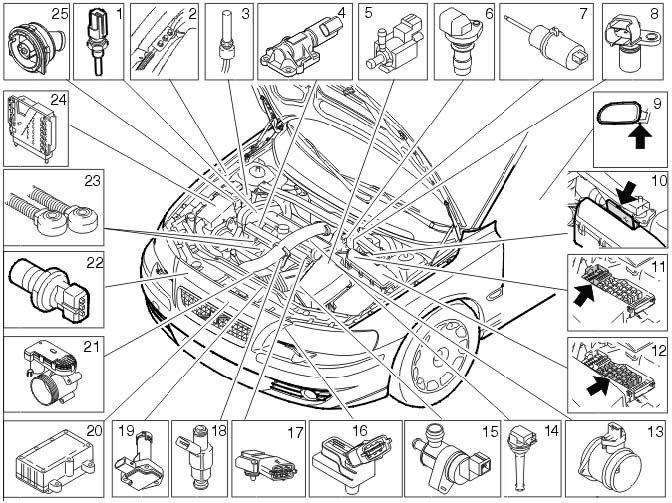

Location of components, engine compartment
Not all the following components are necessarily in the car. The components vary between engine types.

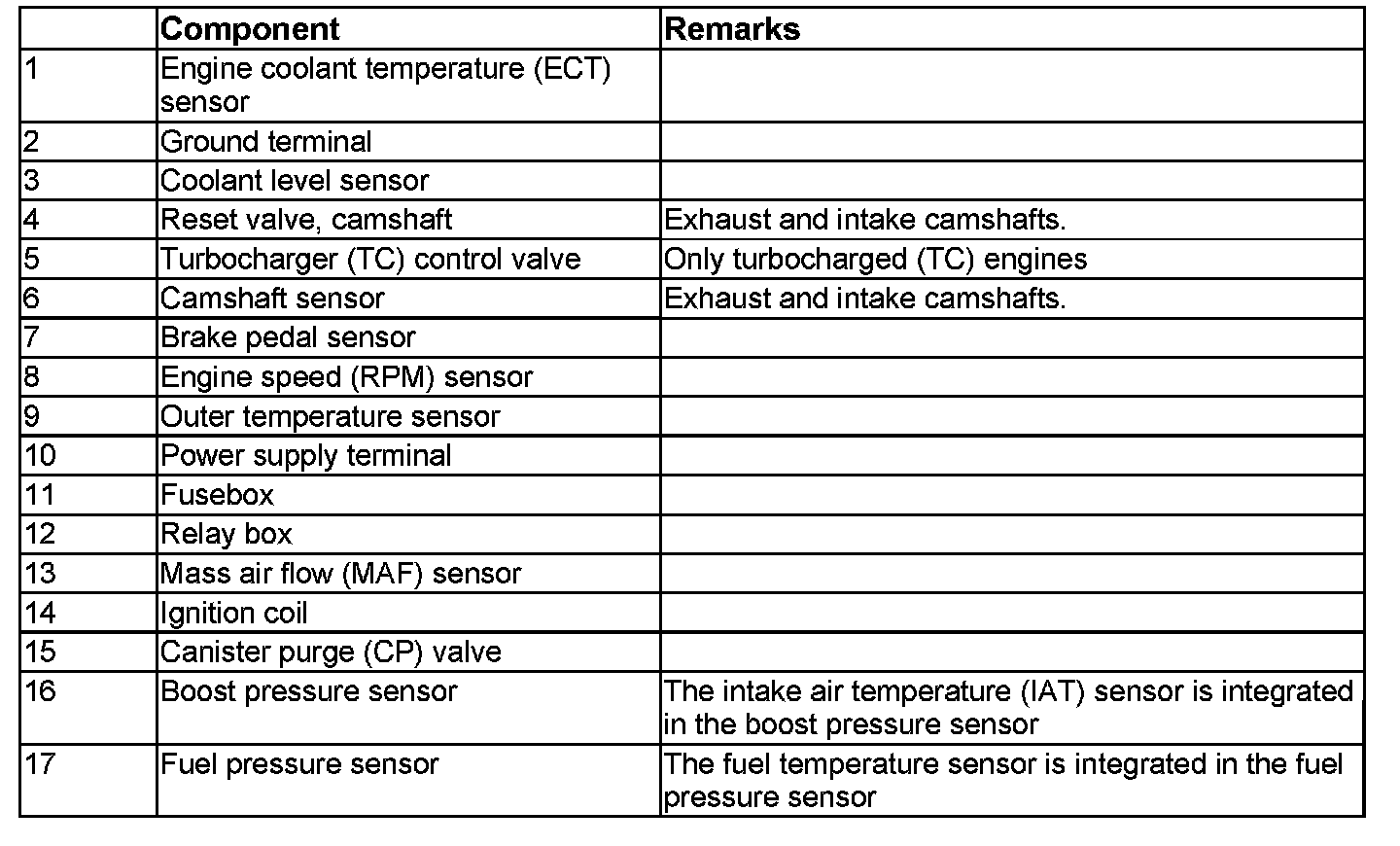

Part 1:

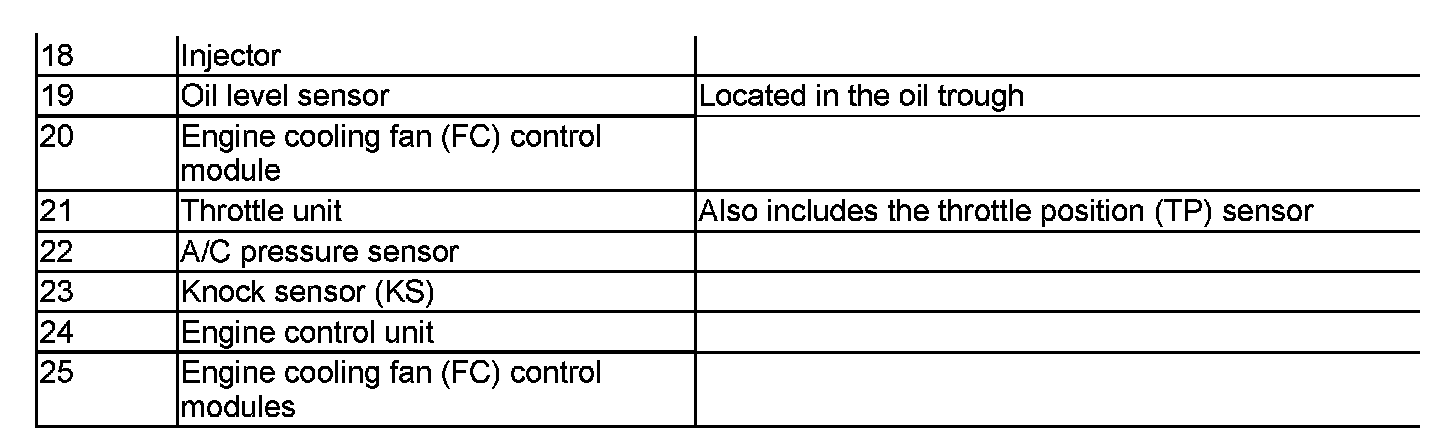

Part 2:




Part 3:
