Oil Pan: Specifications

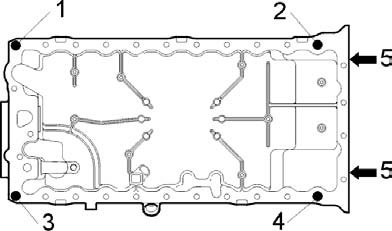

Oil pan (Applies to B5254T4)
screws (1, 2, 3 and 4) 3 Nm
screws (5) 25 Nm
Then tighten 48 Nm
