S60R AWD L5-2.5L Turbo VIN 52 B5254T4
>>
Repair and Diagnosis
>>
Diagrams
>>
Grounds
>>
31/72
31/72

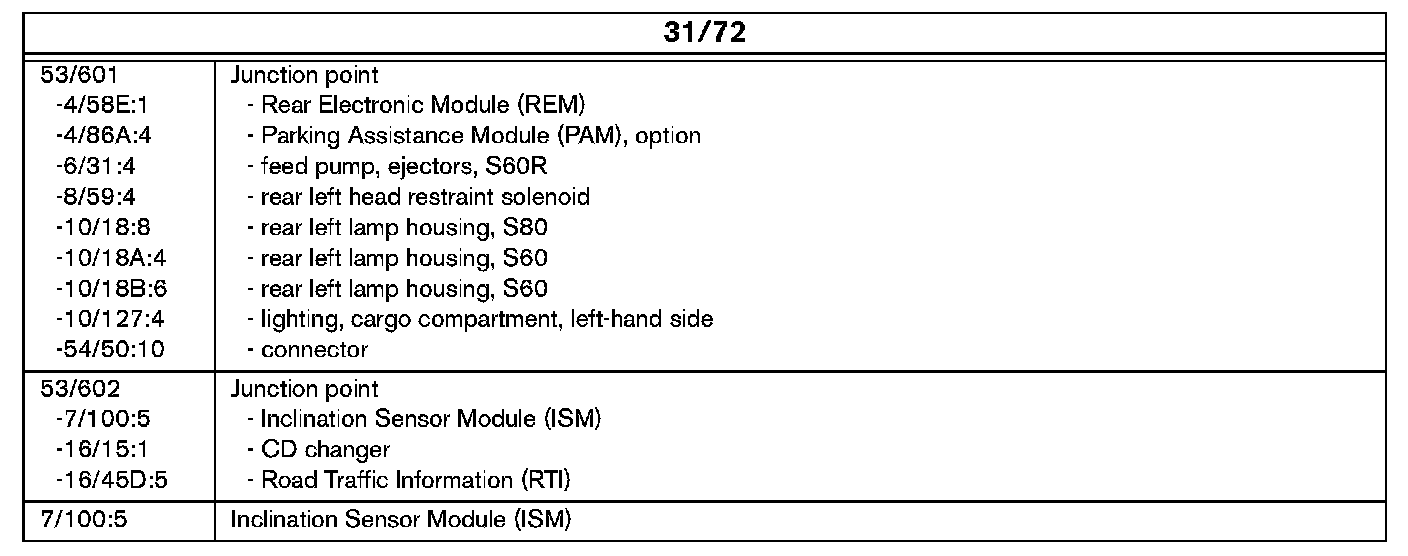

Ground Connection 31/72:
31/72 Ground Connection:
