Home >> Volvo >> 2004 >> S60R AWD L5-2.5L Turbo VIN 52 B5254T4 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Seats >> System Diagram >> Power Driver's Seat

Power Driver's Seat



Power Driver's Seat

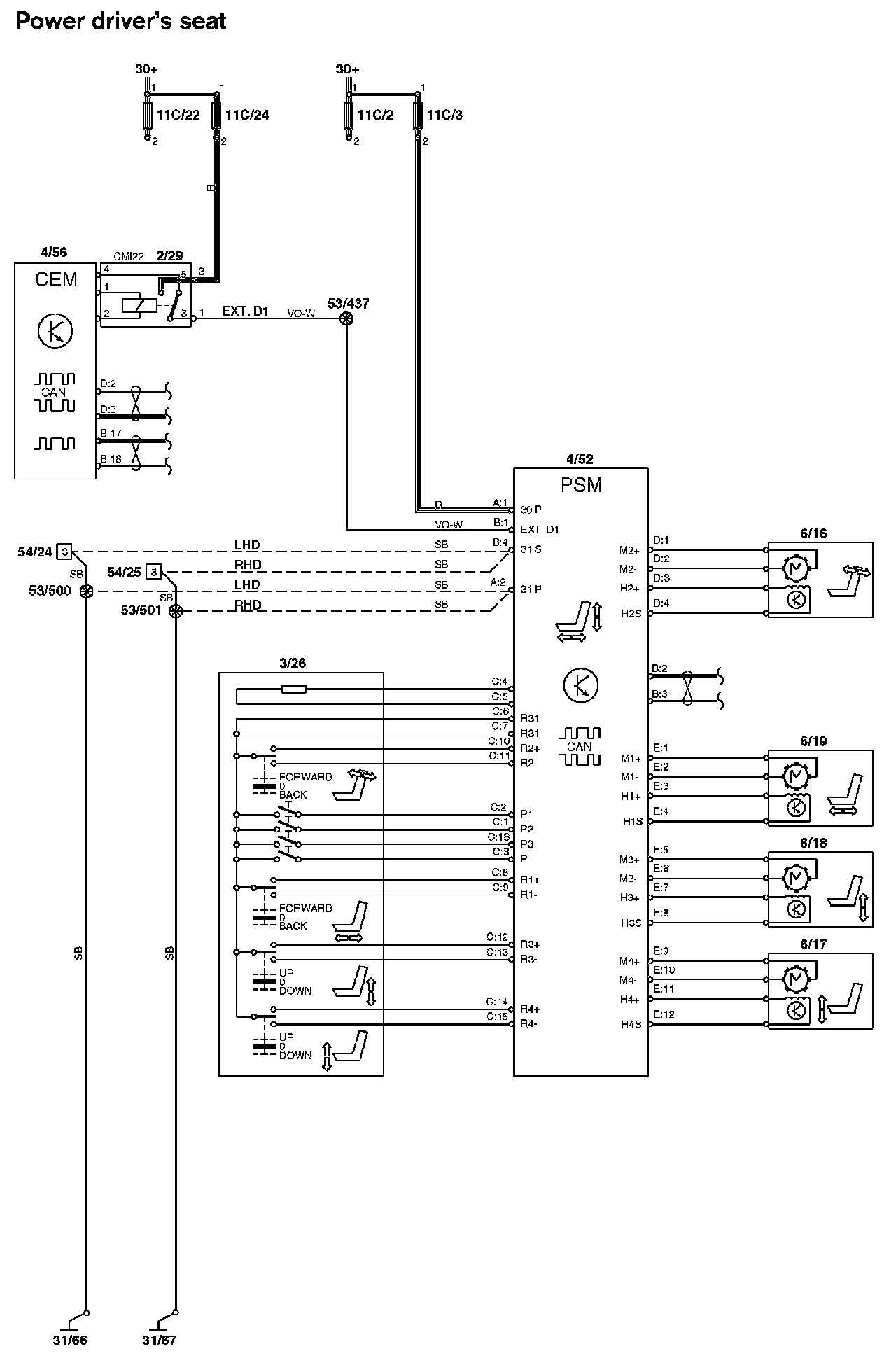

Power Driver's Seat:






Diagram Legend: Diagram Legend

Wire Color Code and Other Abbreviations: Wire Color Code and Other Abbreviations
