Engine Management System

Engine Management System, 5-Cyl Turbo

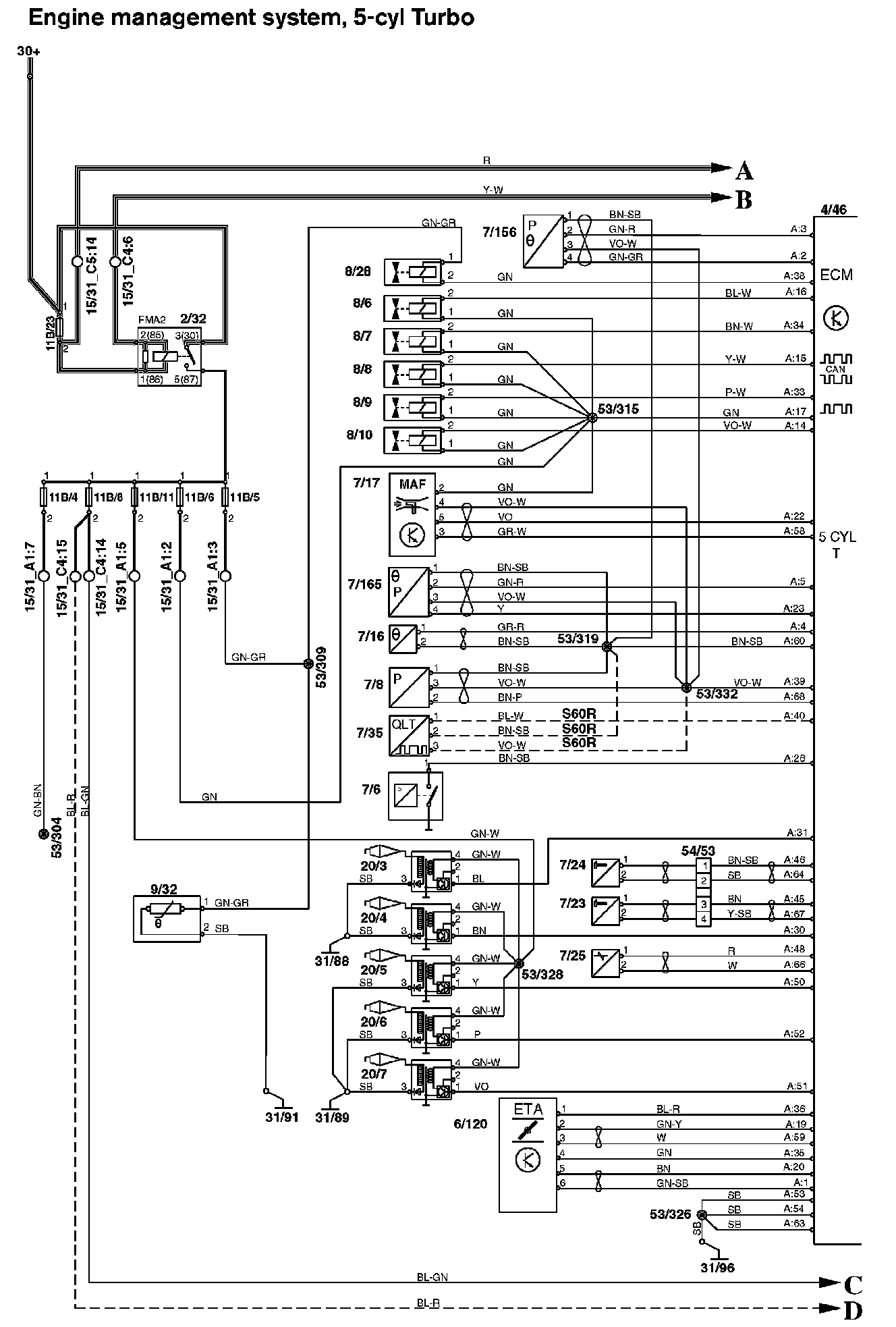

Engine Management System - Part 1:

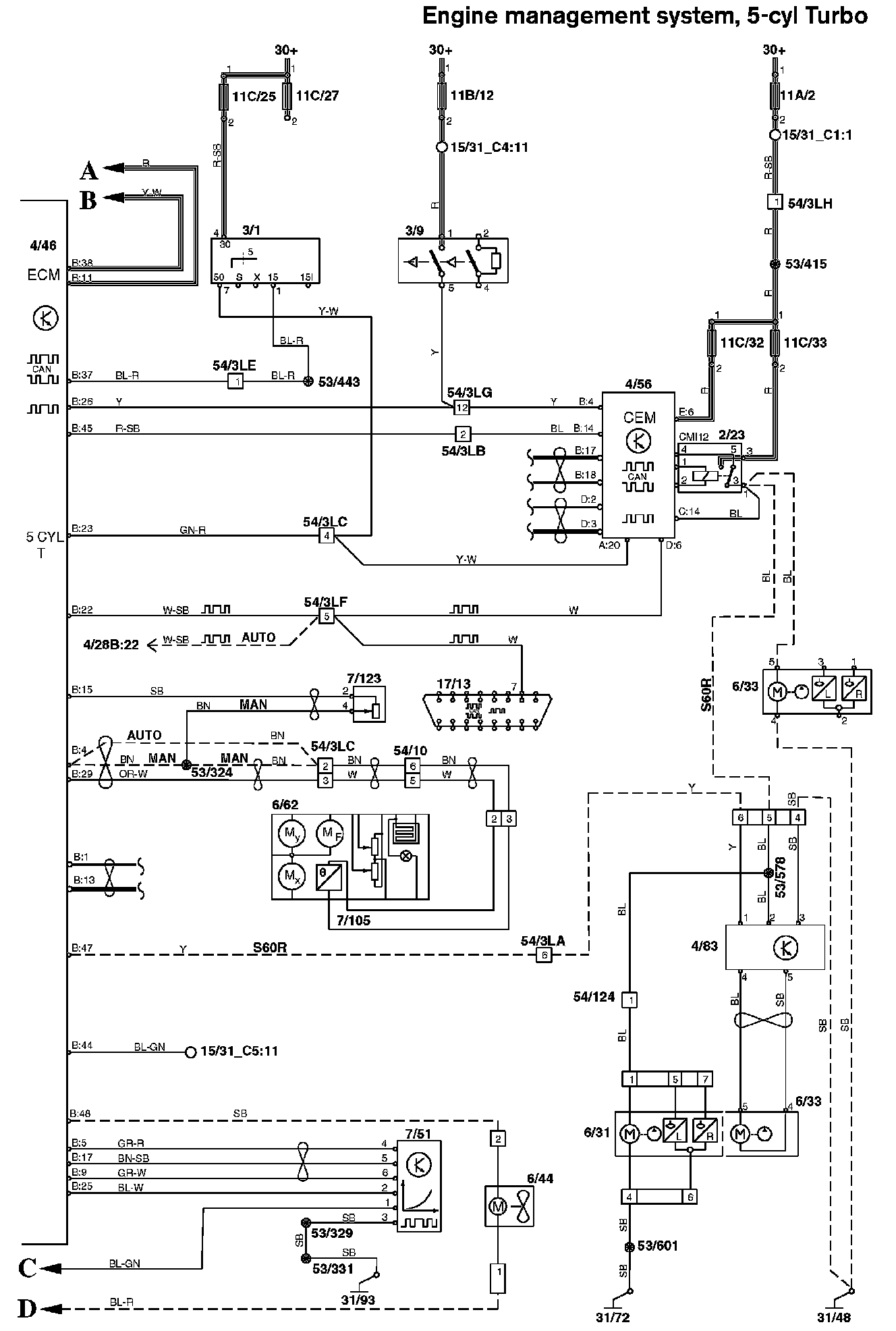

Engine Management System - Part 2:

Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations
