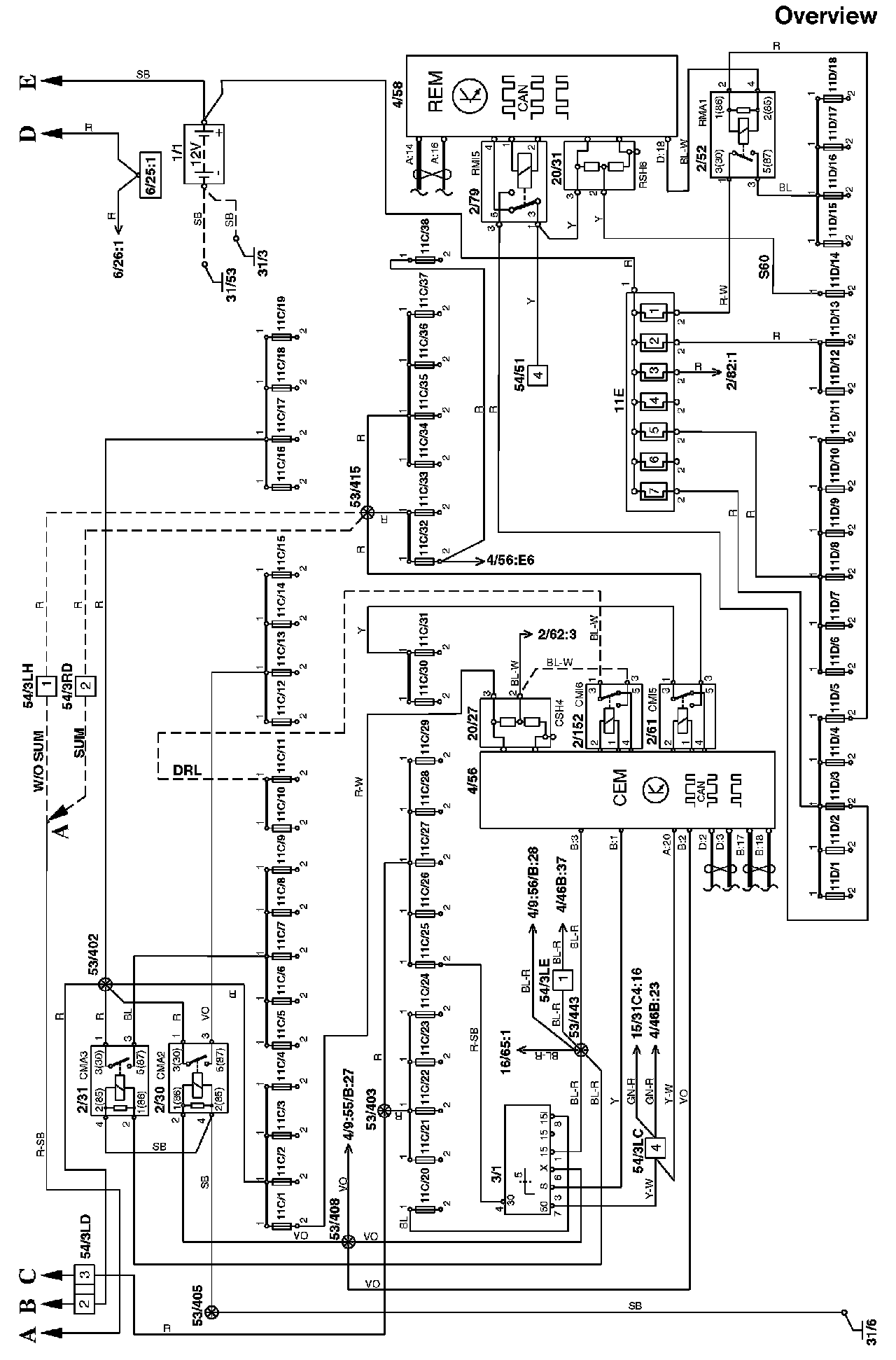

Electrical Distribution, Overview



Electrical Distribution, Overview

Overview, Part 1:




Overview, Part 2:






Diagram Legend: Diagram Legend

Wire Color Code and Other Abbreviations: Wire Color Code and Other Abbreviations
