Manual Climate Control (MCC)



Manual Climate Control (MCC)

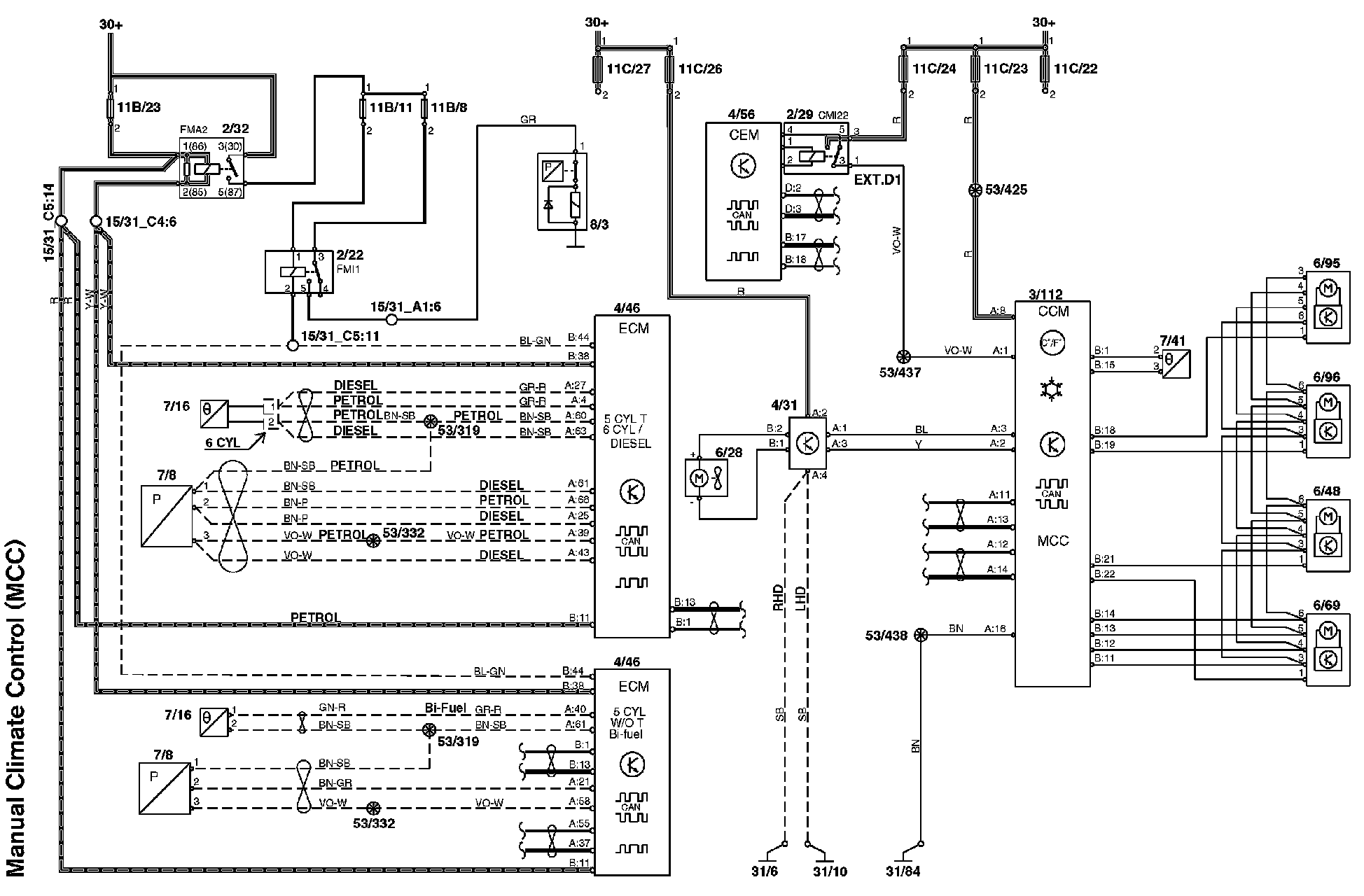

Manual Climate Control (MCC):






Diagram Legend: Diagram Legend

Wire Color Code and Other Abbreviations: Wire Color Code and Other Abbreviations
