Mobile Phone



Mobile Phone

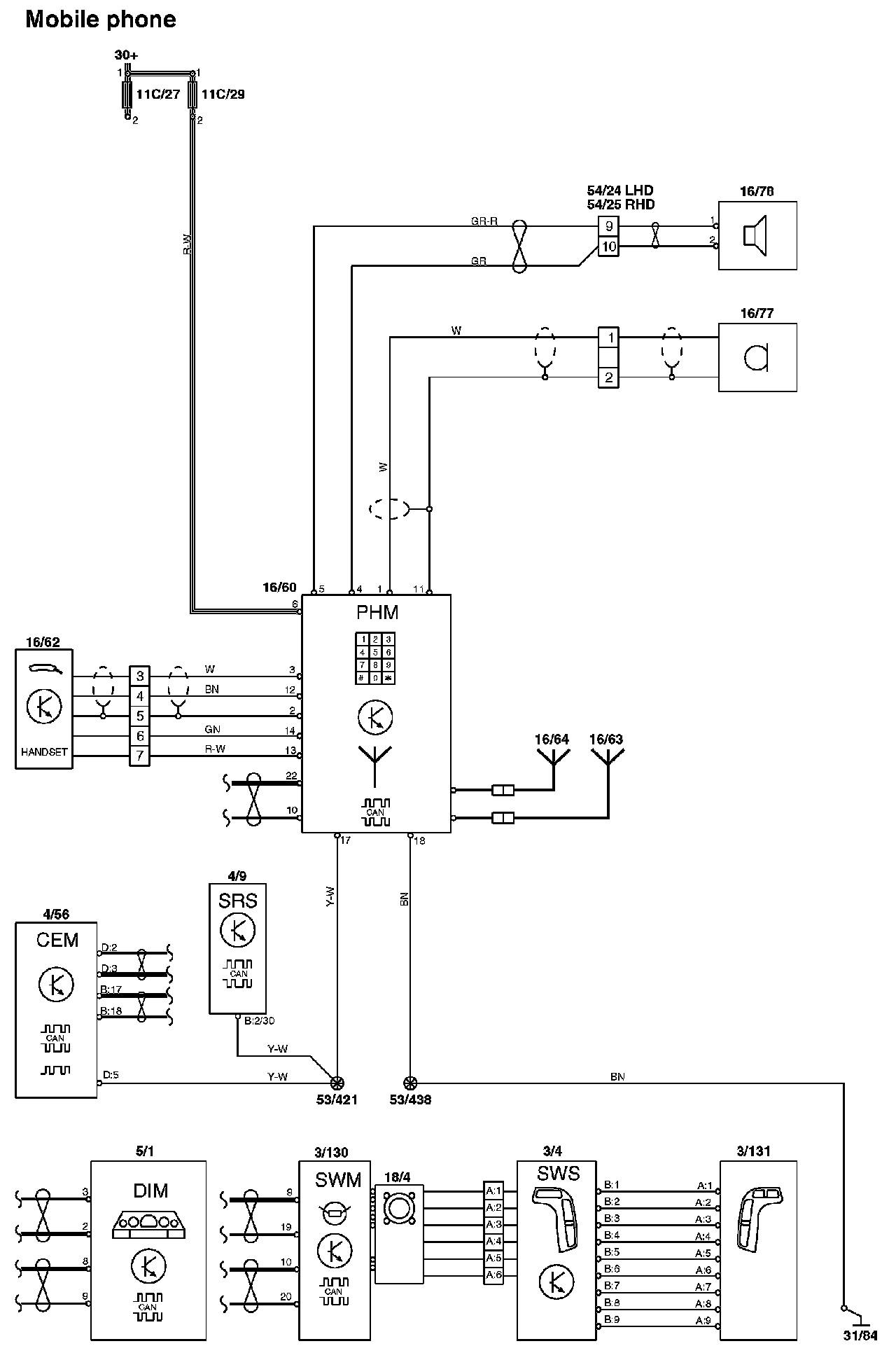

Mobile Phone:






Diagram Legend: Diagram Legend

Wire Color Code and Other Abbreviations: Wire Color Code and Other Abbreviations
