Electronic Immobilizer



Electronic Immobilizer

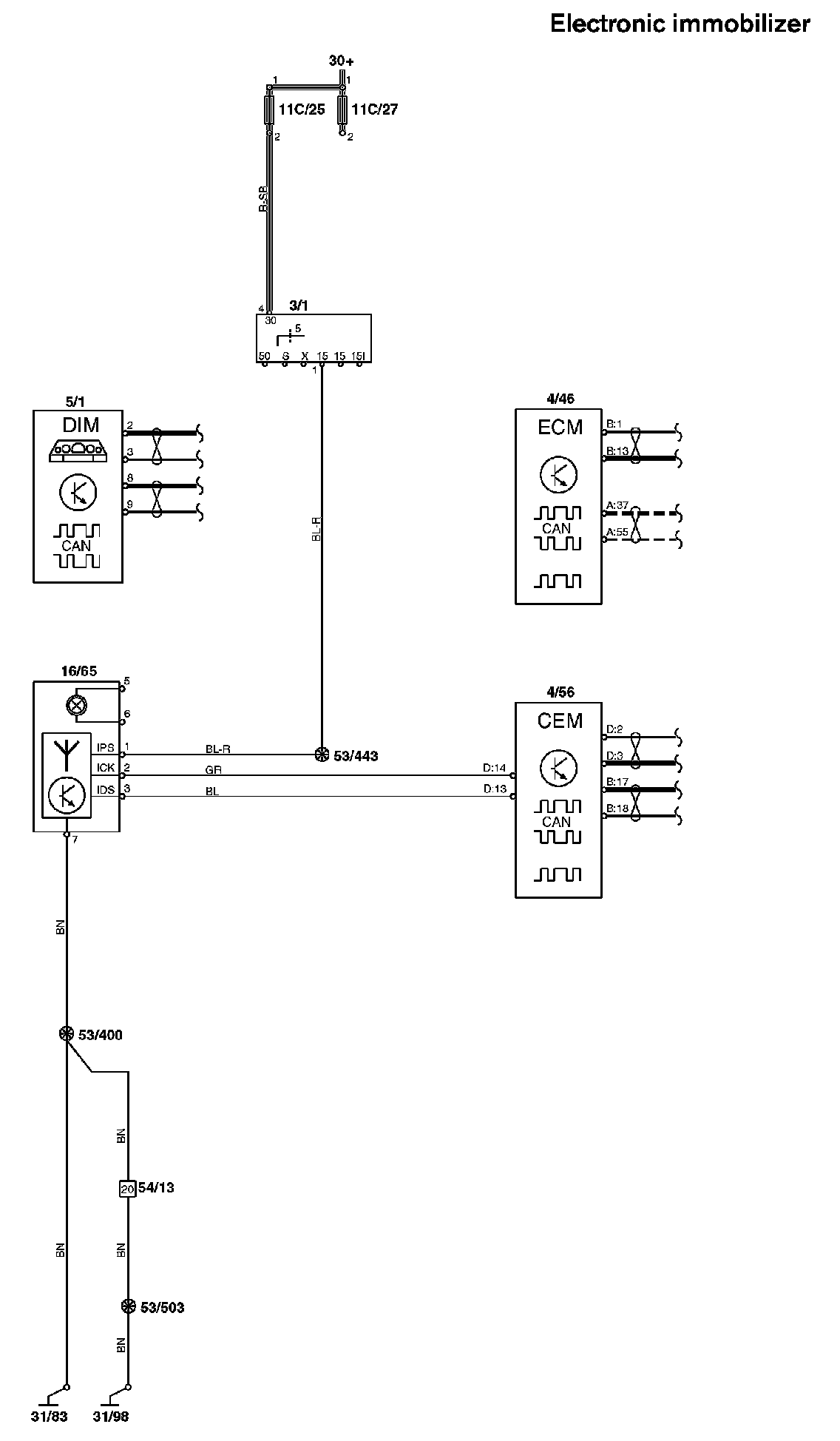

Electronic Immobilizer:






Diagram Legend: Diagram Legend

Wire Color Code and Other Abbreviations: Wire Color Code and Other Abbreviations
