Antilock Brakes / Traction Control Systems

Brake Control Module (BCM)

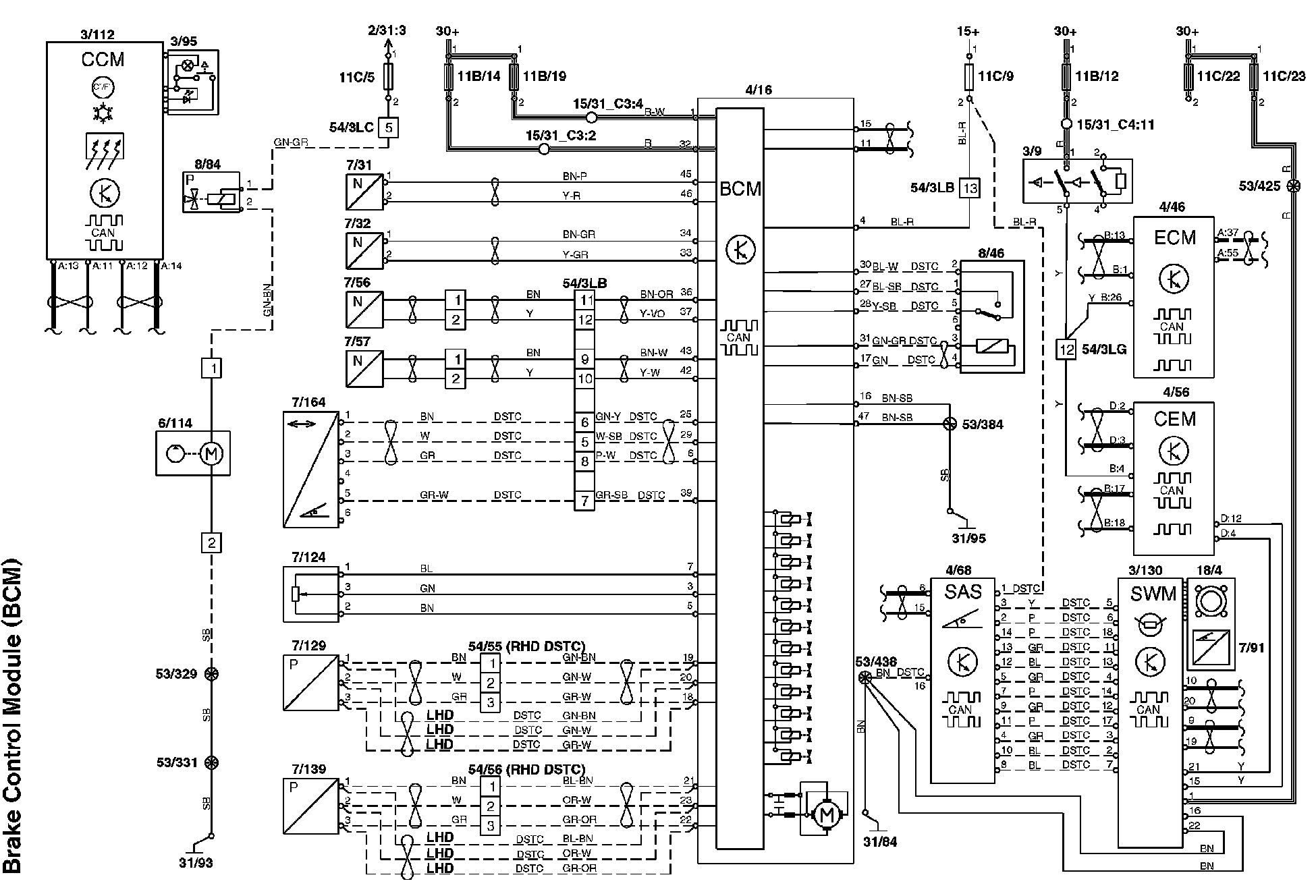

Brake Control Module (BCM):

Diagram Legend: Diagram Legend

Wire Color Code and Other Abbreviations: Wire Color Code and Other Abbreviations
