S60R AWD L5-2.5L Turbo VIN 52 B5254T4
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
54/43
54/43
Connectors 54/43:

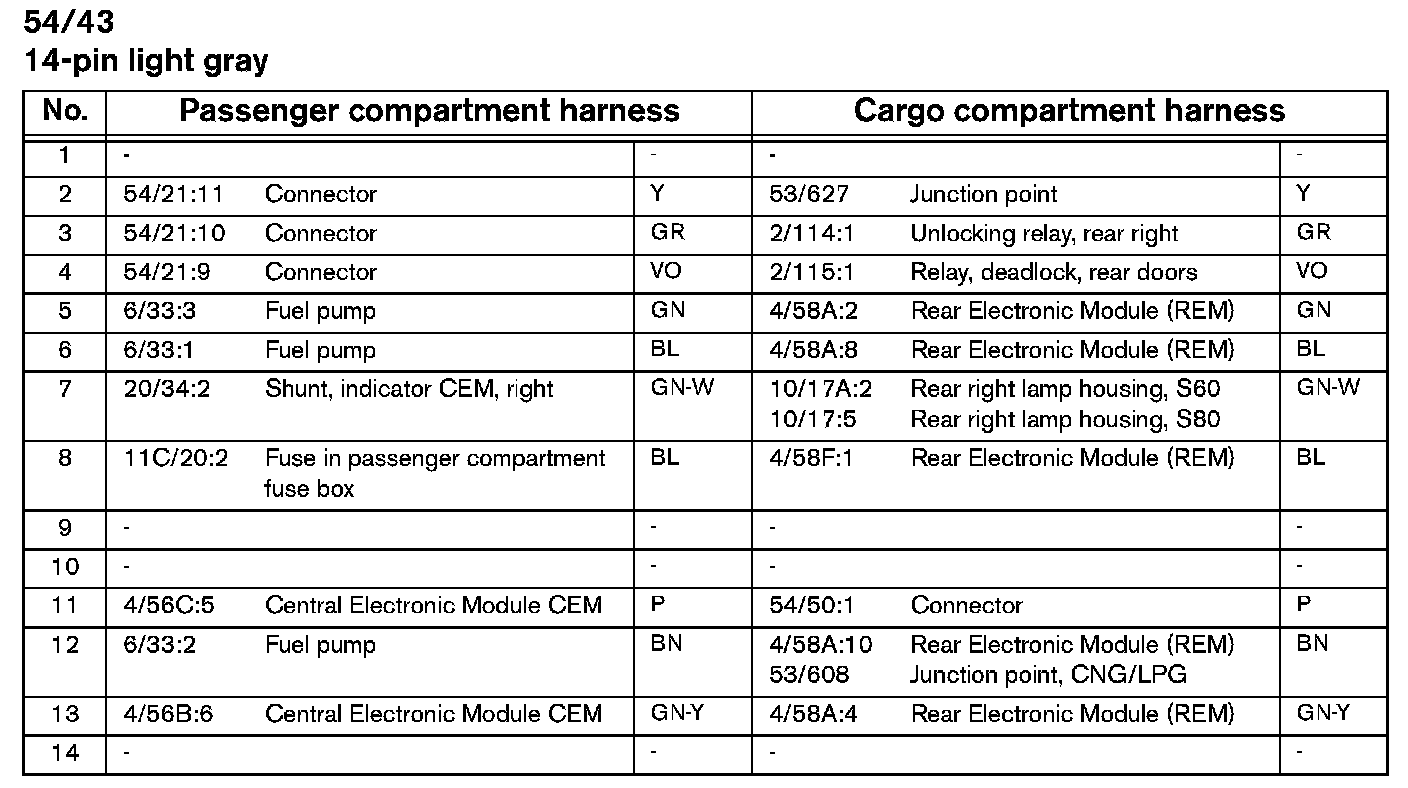

54/43 Connector:
