S60R AWD L5-2.5L Turbo VIN 52 B5254T4
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

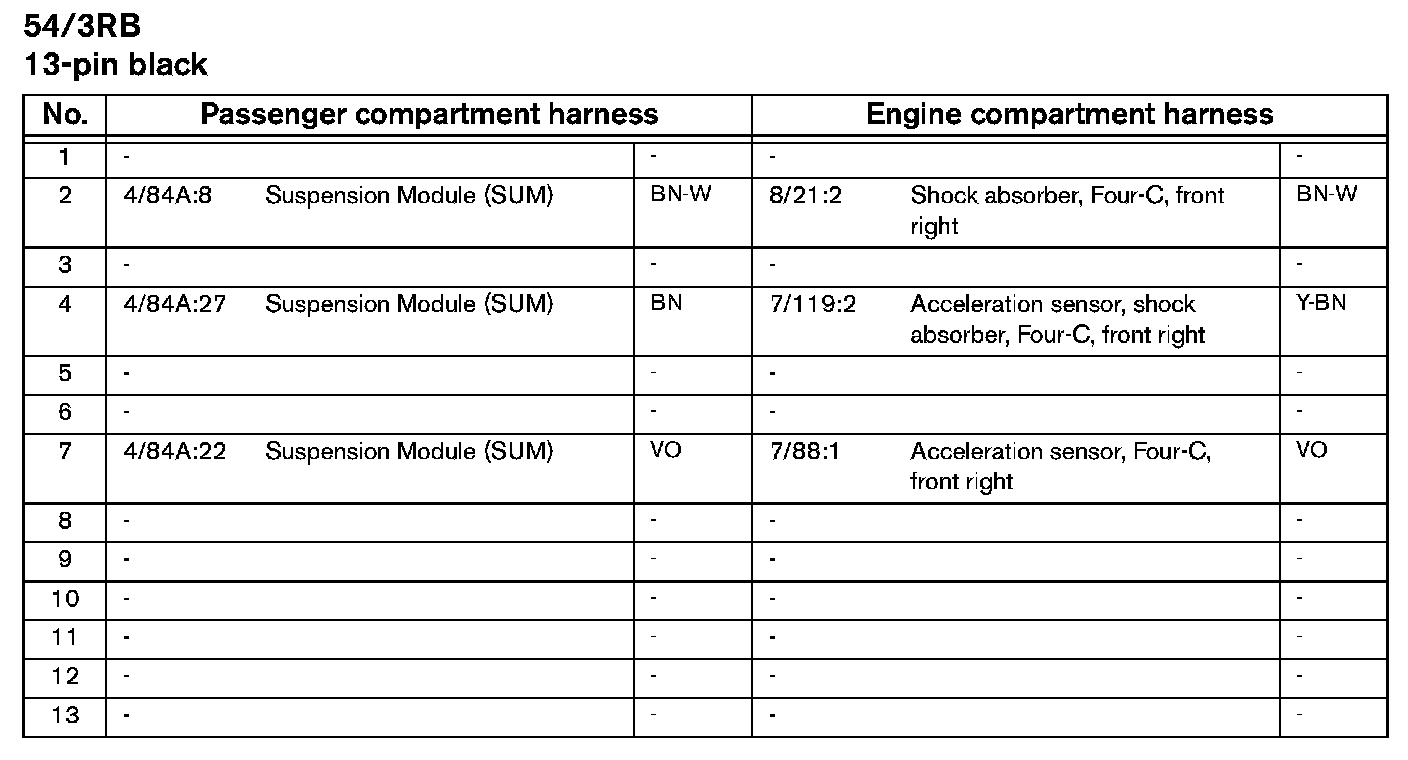

54/3RB
54/3RB
Connectors 54/3RB:
54/3RA-G Connector:
