Home >> Volvo >> 2004 >> S60R AWD L5-2.5L Turbo VIN 52 B5254T4 >> Repair and Diagnosis >> Diagrams >> Connector Views >> 54/3LE

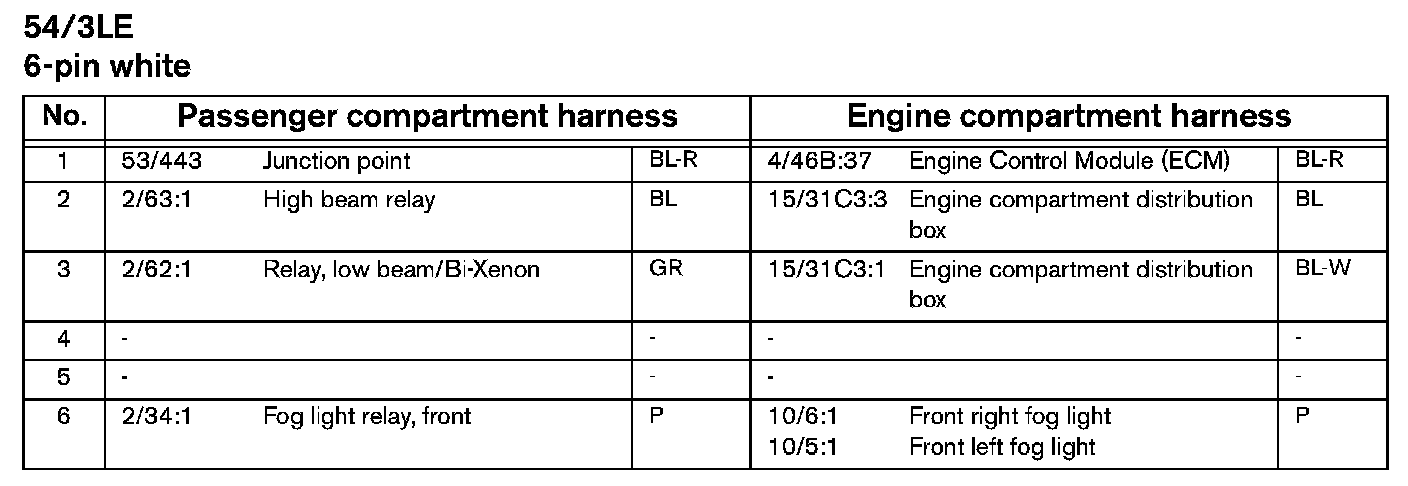

54/3LE

Connectors 54/3LE:



54/3LA-G Connector:
