S60R AWD L5-2.5L Turbo VIN 52 B5254T4
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
54/14
54/14

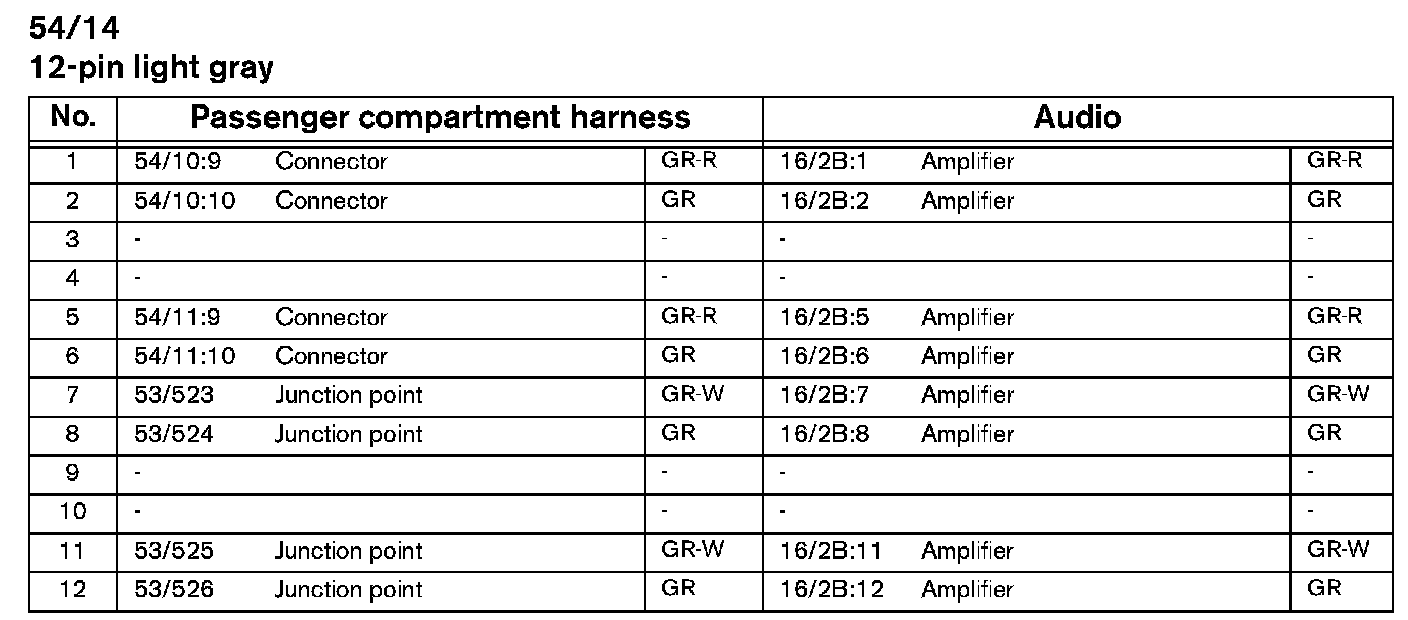

Connectors 54/14:
54/14 Connector:
