R.H.D

Bushing, brake pedal, replacing

Preparations
See Bushing, brake pedal, replacing, AW50/51 AWD, R.H.D, AW55-50/51SN, R.H.D Bushing, Brake Pedal, Replacing.

Remove the relay box from its bracket
See Bushing, brake pedal, replacing, AW50/51 AWD, R.H.D, AW55-50/51SN, R.H.D Bushing, Brake Pedal, Replacing.

Remove the brake pedal

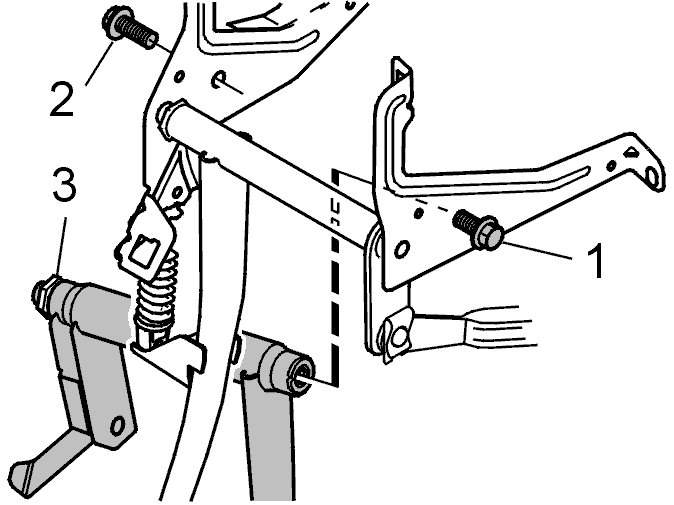

Slacken off the screw (1) but leave it in place.
Remove the screw (2) above the clutch pedal. Counterhold the nut (3) using a 24 mm PU wrench.
Fold the pedal out of the bracket.

Replace the bushing
See Bushing, brake pedal, replacing, AW50/51 AWD, R.H.D, AW55-50/51SN, R.H.D Bushing, Brake Pedal, Replacing.

Install the brake pedal





Install:
- the brake pedal in its bracket and the screw (1)
- the screw (2). Counterhold the nut (3). Tighten the screws. Tighten to 40 Nm.

Install the push rod and the clip on the brake pedal
See Bushing, brake pedal, replacing, AW50/51 AWD, R.H.D, AW55-50/51SN, R.H.D Bushing, Brake Pedal, Replacing.

Install the relay box in its bracket. Install the soundproofing panel
See Bushing, brake pedal, replacing, AW50/51 AWD, R.H.D, AW55-50/51SN, R.H.D Bushing, Brake Pedal, Replacing.
