Brakes - Front and Rear Brakes Squeal

NO: 51-09

DATE: 3-30-2005

MODEL: S60/ V70 R-line only

M.YEAR: 2004-2005

SUBJECT:
Front and Rear brake squeal

REFERENCE: VIDA / VADIS

DESCRIPTION:
A front brake caliper dampener and new rear brake pads with improved noise suppression properties have been introduced in production. These improvements are now available as a service solution. If a customer should complain of a squealing noise from the front or rear brakes follow the appropriate instructions below.





SERVICE FRONT BRAKES:

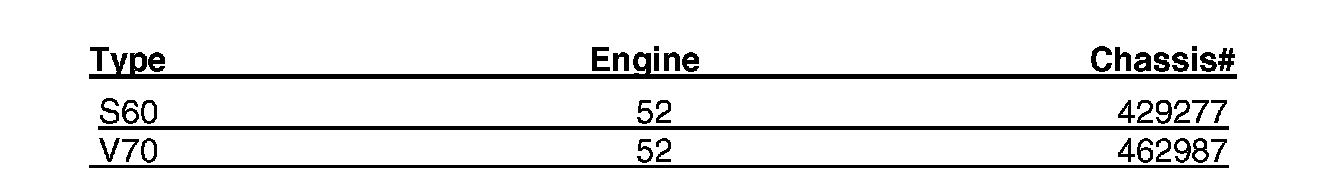

If there is a squealing noise from the front brakes and the vehicle is below the listed chassis # follow the instructions below.

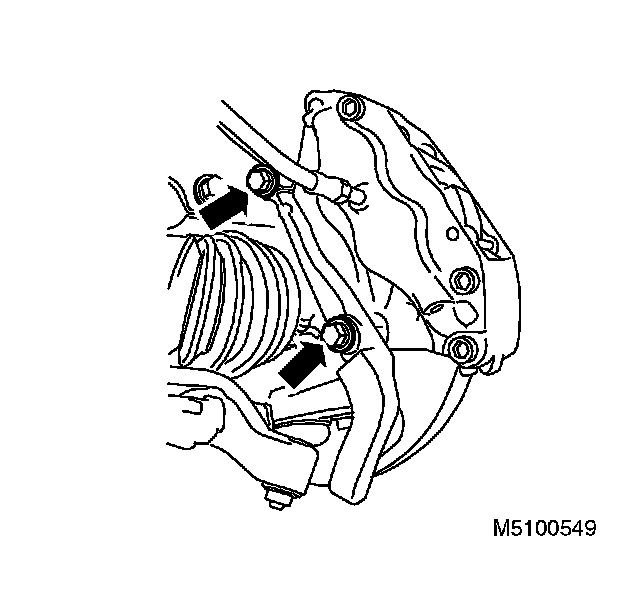

Remove Bolts 1.

^ Remove the two caliper bolts.

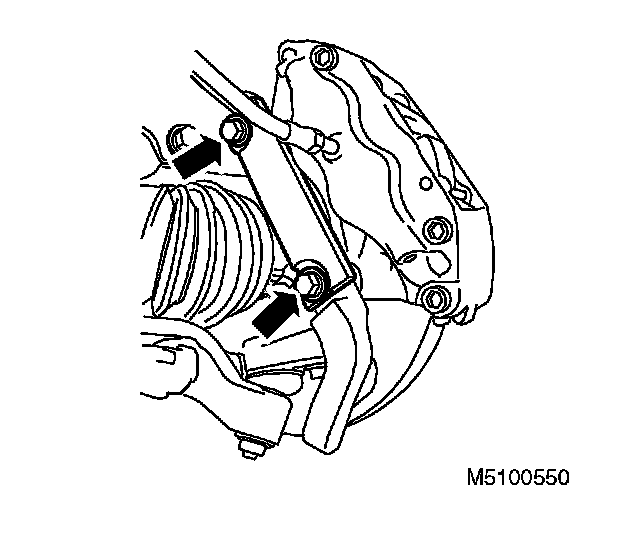

Assembling of the mass damper 2.





^ Install the mass dampers as shown (one on each front caliper).

^ Use two new bolts (supplied in kit) on each caliper. (Torque to 100 Nm / 74 ft lbs).

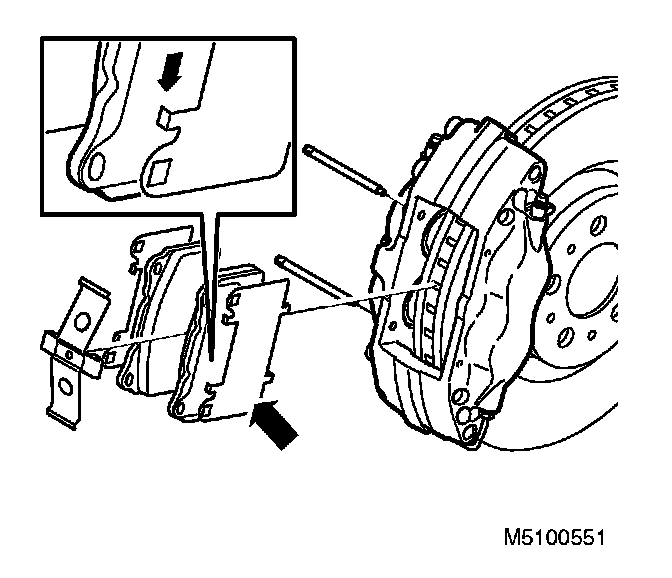

Removing brake pad shims 3.

^ Remove the brake pads. Remove and discard the two stainless steel shims attached to each brake pad.

^ Grease the brake pads and the contact surfaces in the brake caliper with the silicone grease (1161688).

^ Reinstall pads

Note!
The brake pads are marked with directional arrows that will point downwards.





SERVICE REAR BRAKES:

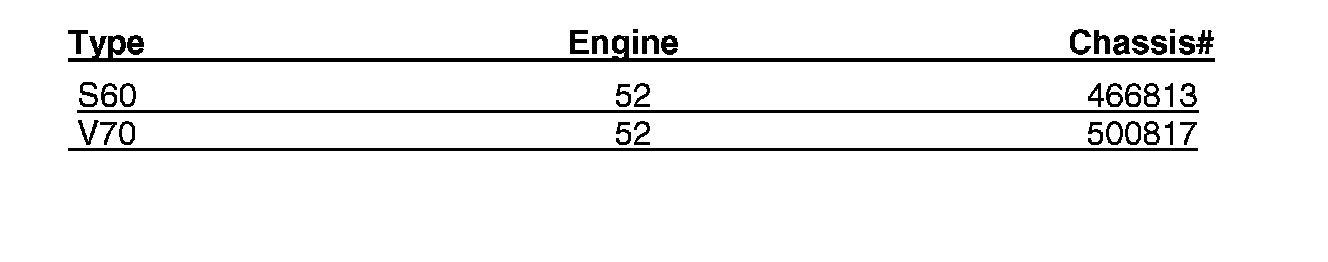

If there is a squealing noise from the rear brakes and the vehicle is below the listed chassis # replace the rear brake pads using PN 30683858, apply grease PN 1161688. If these pads PN 30683858 have been installed previously, it will not be necessary to replace them again.

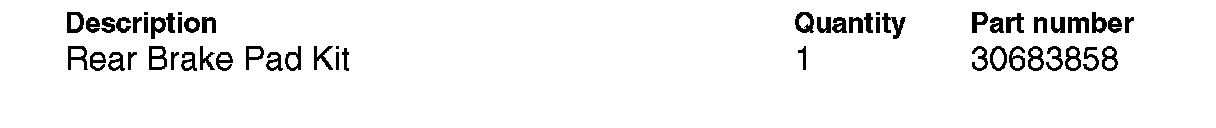

Material

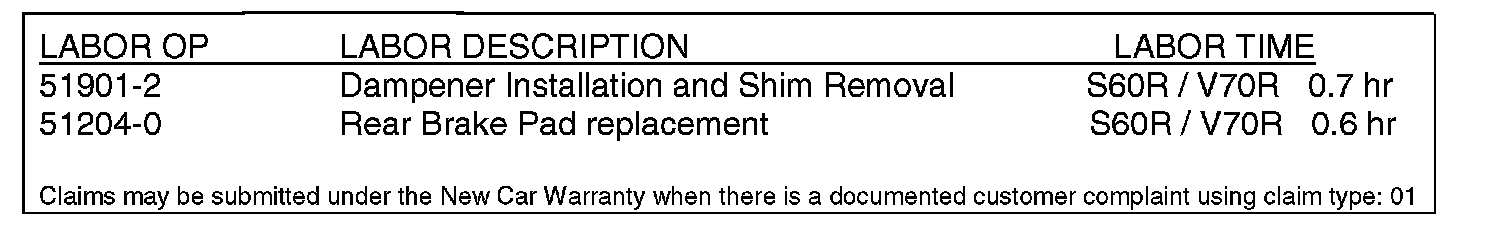

WARRANTY CLAIM INFORMATION
