Signals, BCM With or Without STC/TRACS

Signals, Brake Control Module (BCM) with or without STC (stability and traction control)/TRACS (traction control system)

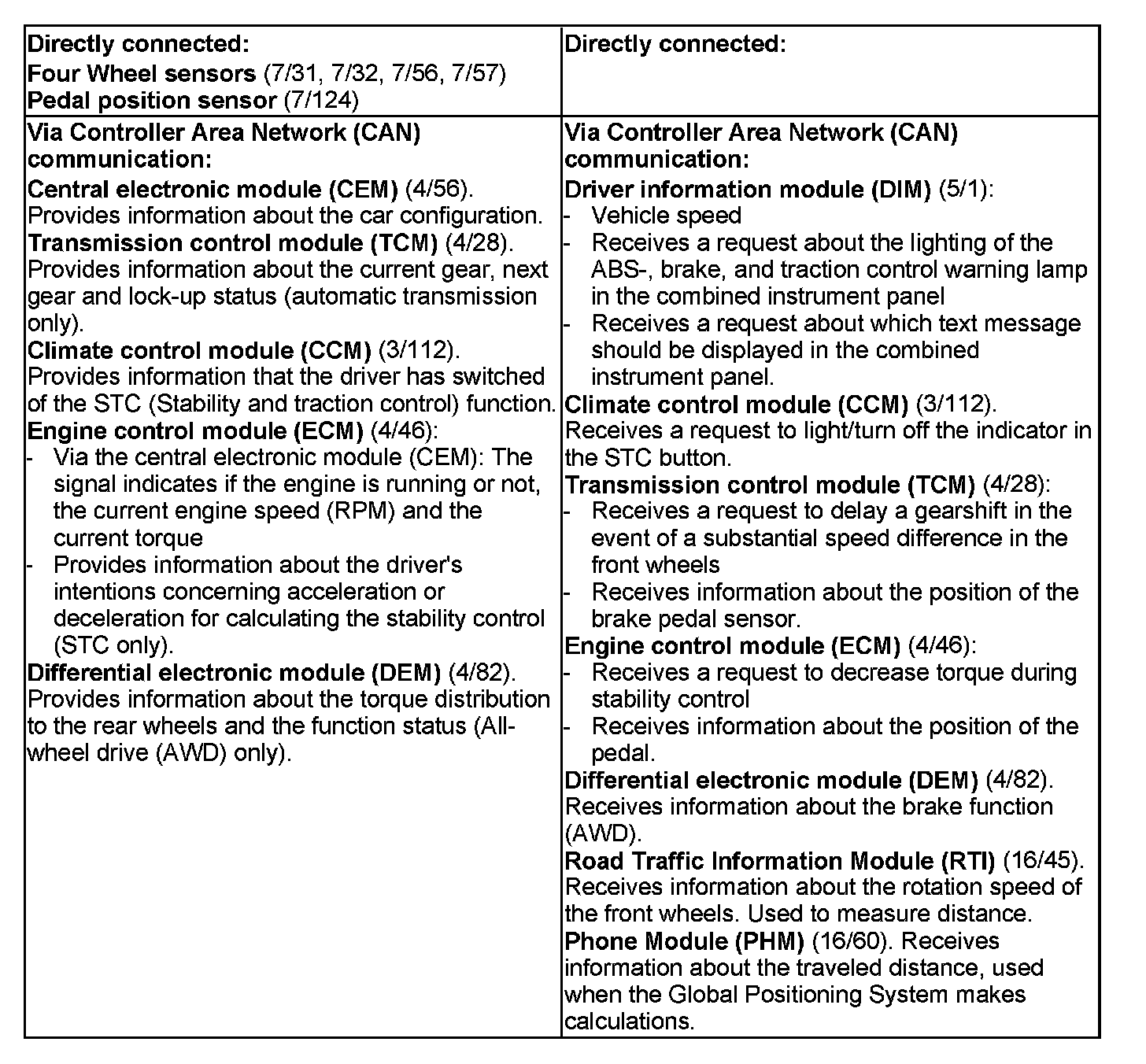

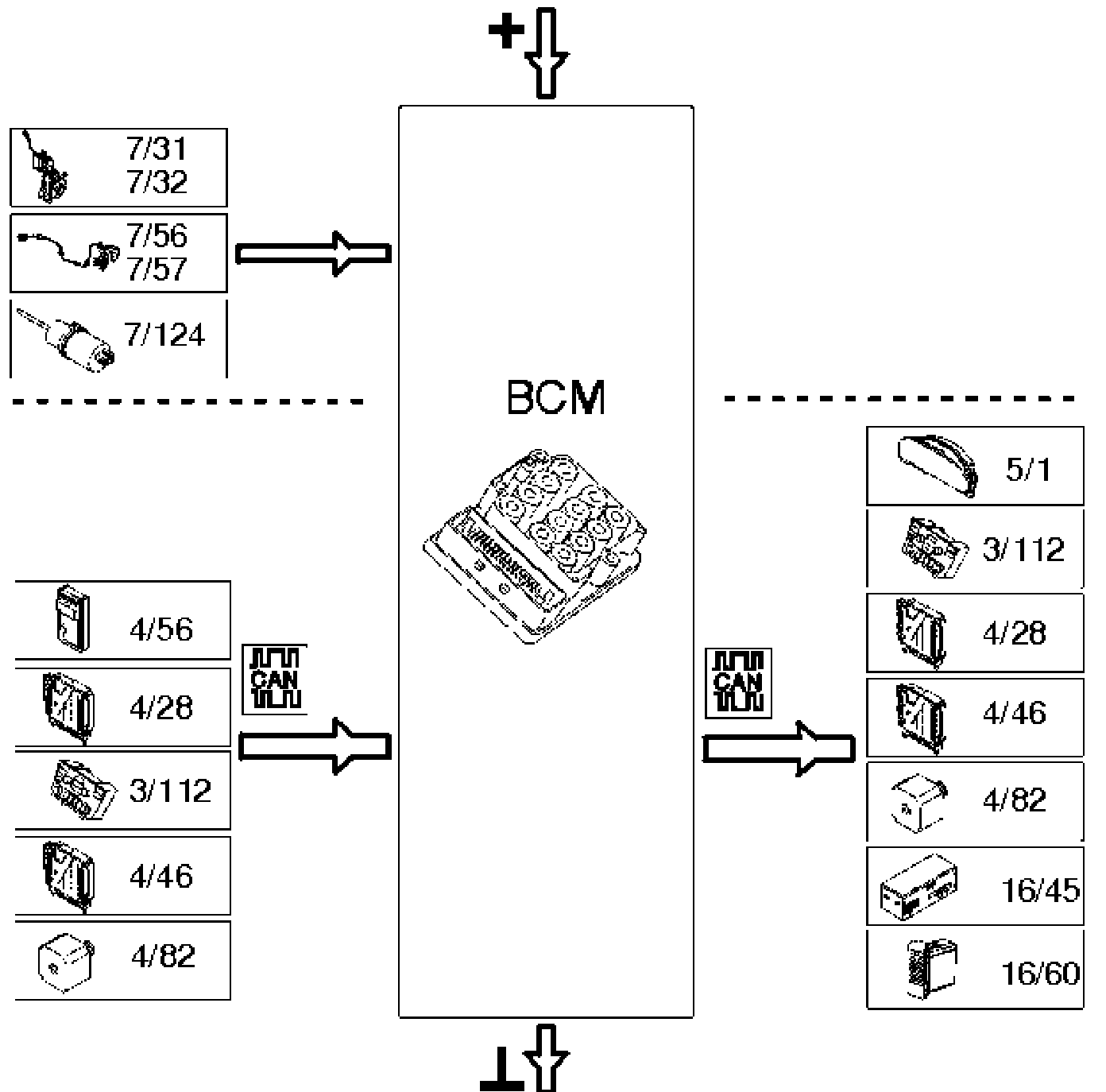

The table summarizes the input signals to and output signals from the Brake Control Module (BCM). The signal types are divided into directly connected signals, serial communication and Controller Area Network (CAN) communication. The illustration displays the same information with the Volvo component designations.
