Mudguard, Replacing






Mudguard, replacing

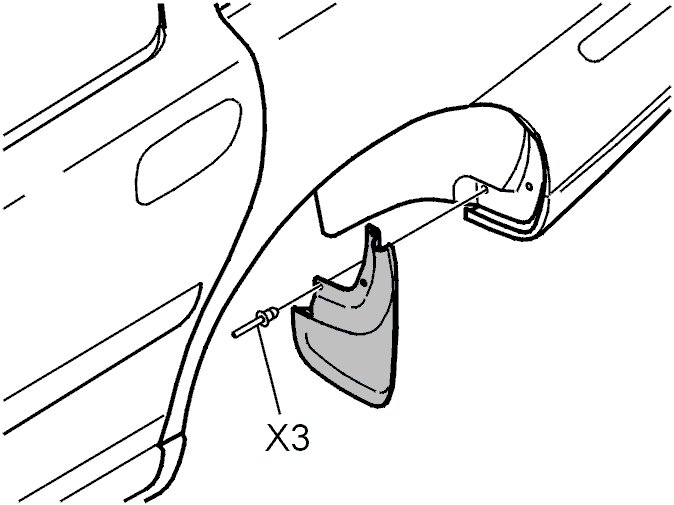

Removing the rear mudguards




Remove the three pop rivets.

Installing the rear mudguards




Install the mudguards with three blind rivets.
