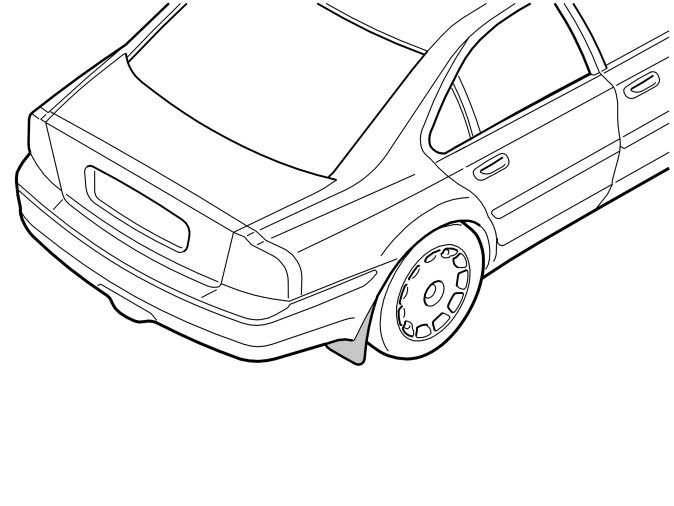

Mudflaps, Rear

Mudflaps, rear


































Mudflaps, rear

Preparations




- Raise the car.
- Remove the rear wheels.

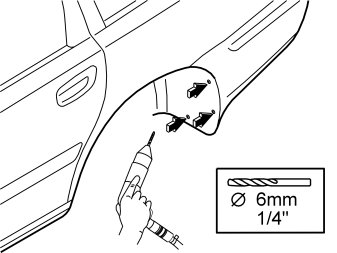

- Carefully drill away the rivets retaining the fender liner and bumper cover. Use a - 6 mm (1/4") drill bit. Ensure that no plastic components are damaged.
- Remove the remains of the rivets.

Installation




- Remove the plastic cord holding both the mudflaps together.

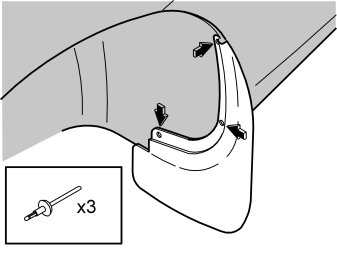

- Install the mudflaps and rivet the mudflaps securely in the fender liner and the bumper cover.
- Reinstall the wheels and tighten to 110 Nm (83 ft. lbf).
- Lower the car.
