Release Handle for the Fold Down Function

Release handle for the fold down function

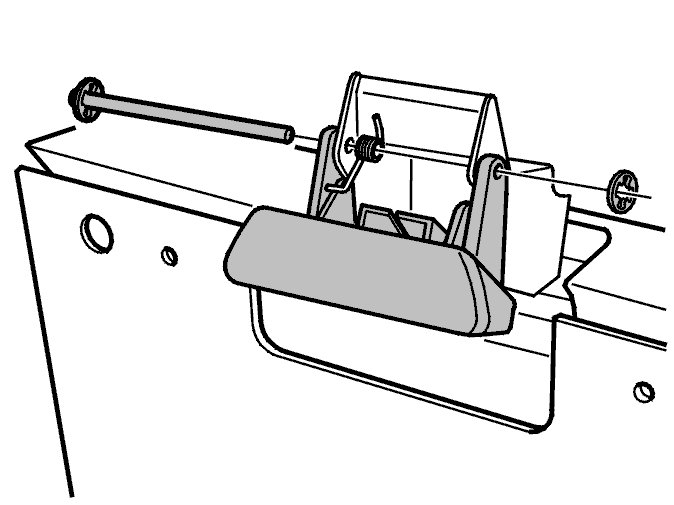

Removing the release handle for the fold down function




Remove the handle side piece according to Backrest side piece Backrest Side Piece.
Remove the holder.
Release the spring.
Remove the holder. Press out the shaft.
Remove the handle.

Note! If the nipple detaches the lower locking function must be adjusted.

Installing the release handle for the fold-down function

Install:
- the handle
- the shaft and the holder
- the spring:
- the side piece handle according to Backrest side piece Backrest Side Piece.
