Second Generation Power Seats

The Seat Frame

Removing the seat frame

Remove:







- the seat from the car.
- the seat cushion padding.
- the backrest frame and mounting.

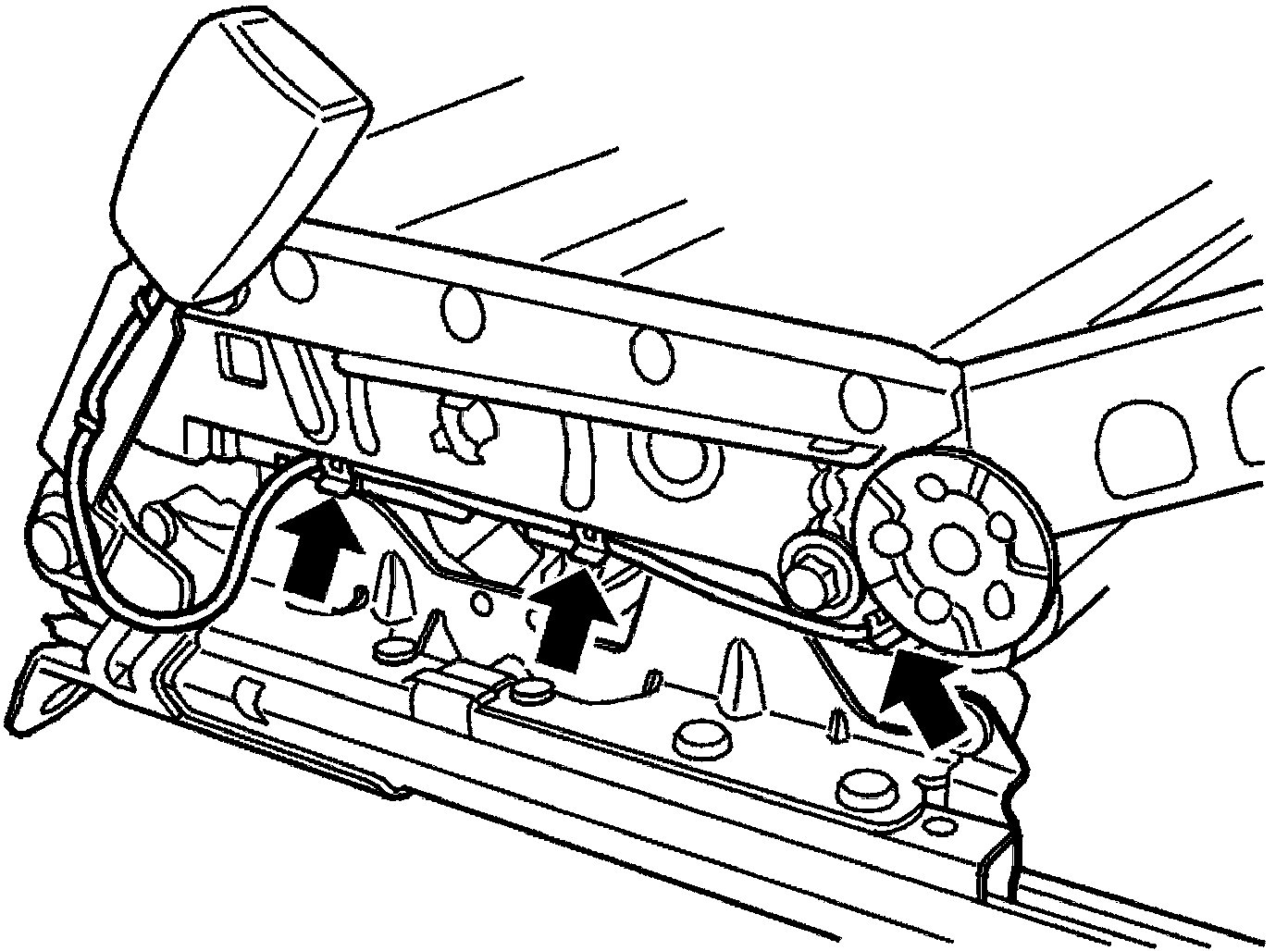

Disconnect the wiring.

NOTE: Check that the wiring is correctly routed.







Remove the seat belt buckle.

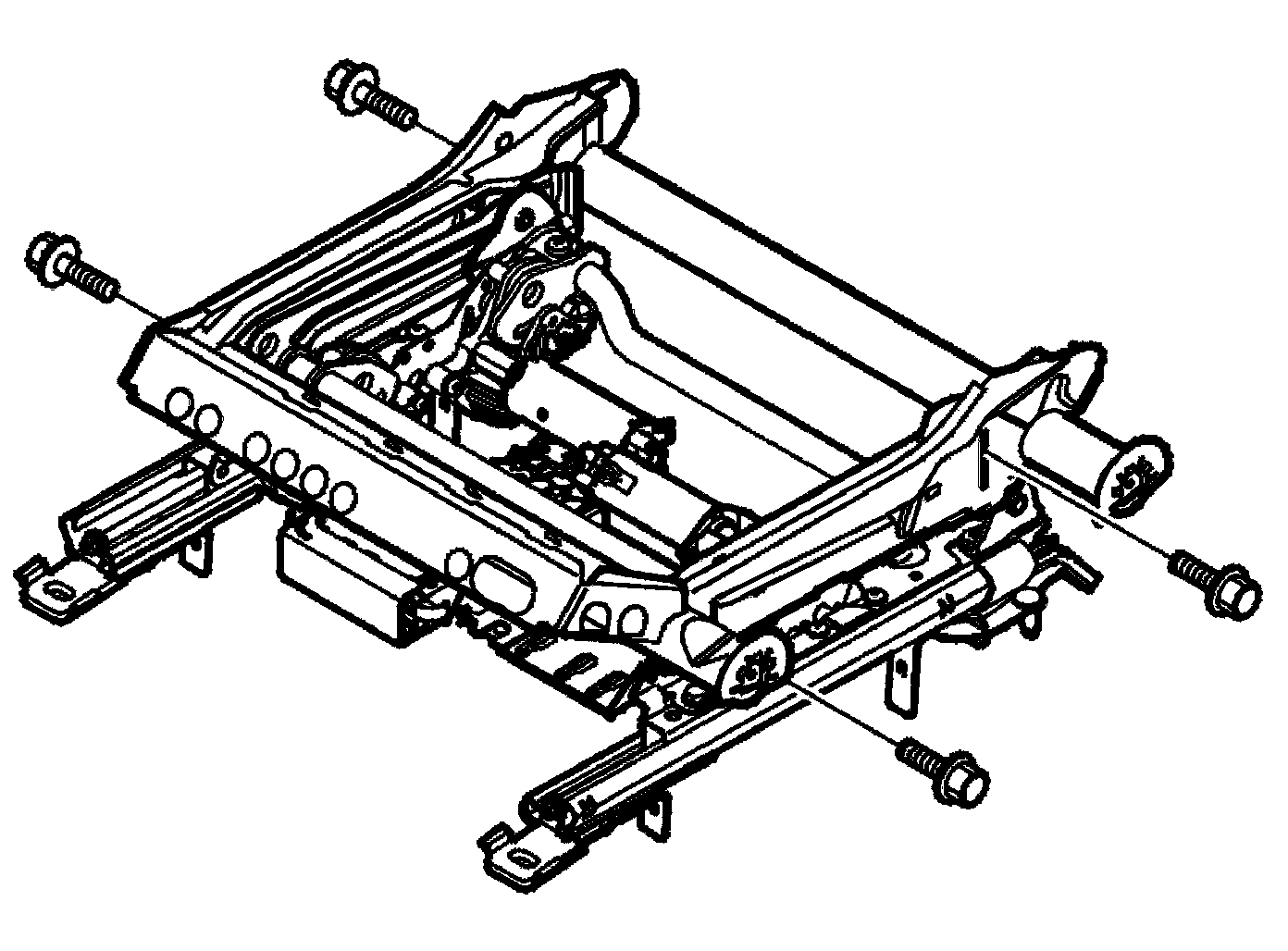

Slacken off two plus two screws.

Remove the seat frame.

Installing the seat frame

Install:
- the seat frame
- two plus two screws
- the seat belt buckle.
- wiring
- the backrest frame.
- the seat cushion padding.
- the seat.
