Backrest (Frame and Mounting)

Backrest (Frame And Mounting)

Preparations

Remove:
- the seat from the car.
- the backrest adjustment knob.
- the head restraint.
- the protective pad.
- the SIPS bag.

Frame, replacing
Cut the rear half moon clip attaching the upholstery to the cushion.

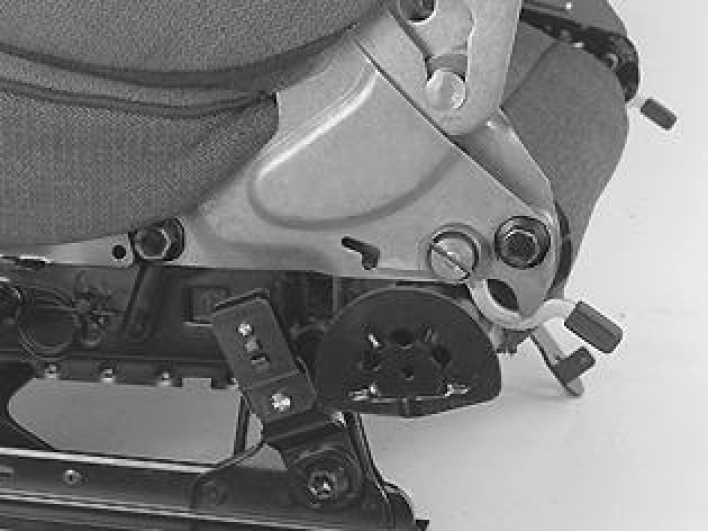

Remove two screws per side and the mounting.

Replace the backrest frame with mounting.

Install:
In reverse order.
