Drive Shaft In the Motor For Front-Rear Adjustment

Drive shaft in the motor for front-rear adjustment

Removing the drive shaft from the motor for front-rear adjustment




Remove the motor for front-rear adjustment. See Front-rear adjustment motor Front-Rear Adjustment Motor.

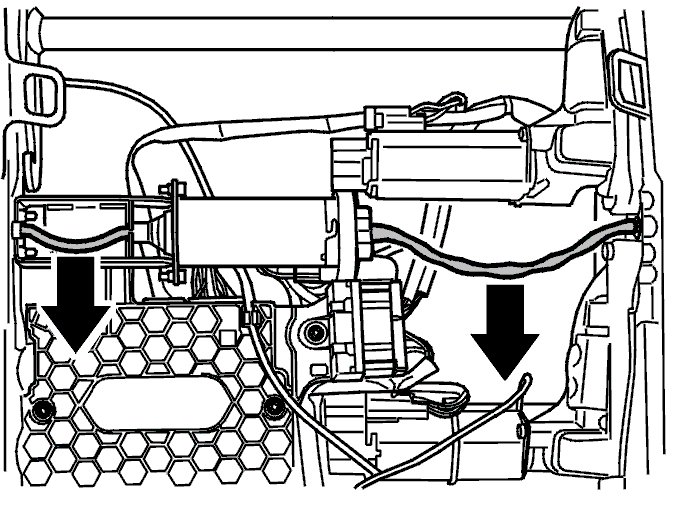

Bend and withdraw the drive shaft from the rail and motor.

Installing the front-rear adjustment motor drive shaft
Install the drive shaft.
Install the front-rear adjustment motor. See Front-rear adjustment motor Front-Rear Adjustment Motor.
