Electric Motor Backrest Cushion, Replacing

Electric motor backrest cushion, replacing

Special tools:
115 8962 CRIMP PLIERS 115 8962 Crimp Pliers

As the illustrations in this service information are used for different model years and / or models, some variation may occur. However, the essential information in the illustrations is always correct.

Preparations




Remove the battery lead. See Battery, disconnecting Battery Disconnecting.

Removing the electric motor for the backrest cushion





Remove:
- the front seat.

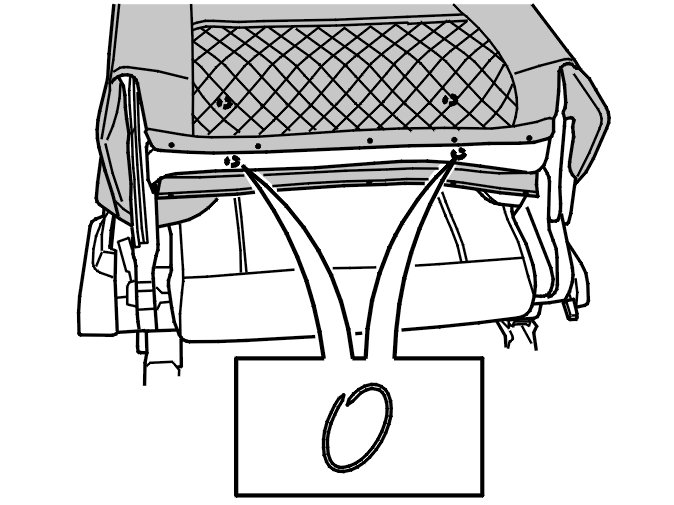

- the 5 half moon clips.




- the 4 half moon clips.
Remove the upholstery up to the first lateral channel. There are two half moon clips on each front-rear channel.
Pull up the upholstery on the backrest cushion.
Be careful with the plastic frame.

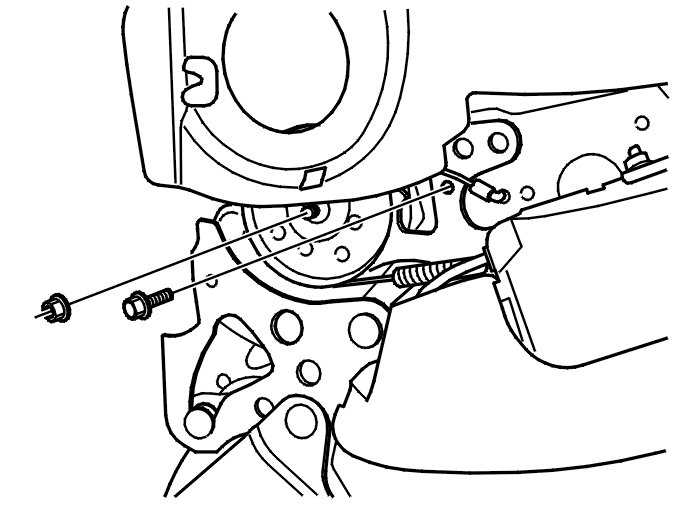

Remove:
- the 1 screw for the shaft
- the 1 nut for the electric motor.

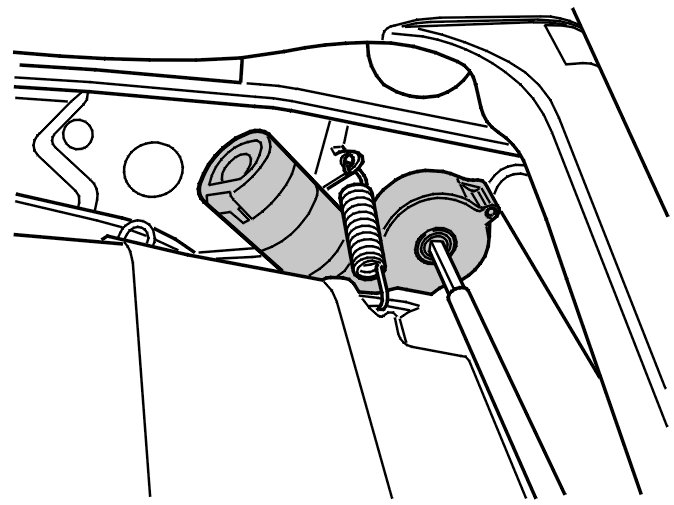

Pull out the shaft so that the electric motor is released.





Remove:
- the spring between the cushion and the electric motor
- the 3 tie straps
- the connector under the seat.

Hint: Note the routing of the wiring to make it easier to reinstall.

Install the electric motor for the backrest cushion

Note! For tightening torques, see relevant specfications.

Install:
- the electric motor. Press the shaft through the motor to secure it
- the 1 M6 screw for the electric motor. Tighten
- the 1 M6 screw for the shaft. Tighten
- the spring.
Route the wiring.
Connect the connector.
Pull down upholstery.

Install:
- the 4 half moon clips. Use special tool 115 8962 CRIMP PLIERS 115 8962 Crimp Pliers
- the 3 tie straps
- the 5 half moon clips. Use special tool 115 8962 CRIMP PLIERS 115 8962 Crimp Pliers
- the front seat.
