Sunroof / Moonroof Track: Service and Repair

Gutter Sun Roof, Replacement

NOTE: The illustrations in this service information are used for different model years and / or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Removing the gutter

The sun roof must be in the half open position.

Remove:







- the glass cover. See Glass sun roof, replacement
- the 2 screws (mounting to the mechanism, screwed from outside).

Pull the gutter forwards slightly.

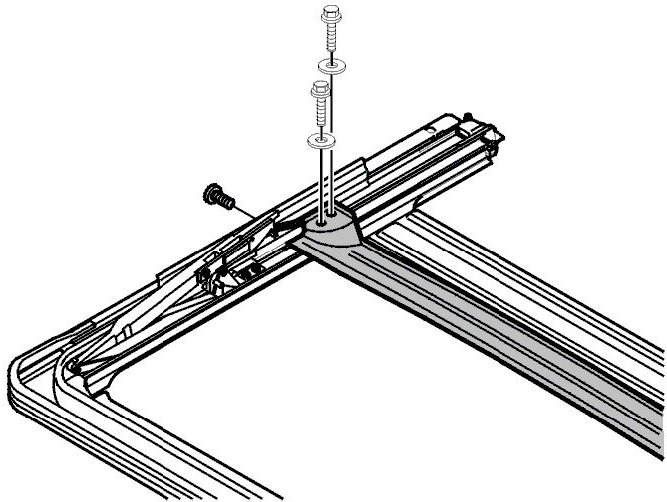

Remove:
- 4 screws with washers,
- the drainage channel.

Installing the gutter

Install:
- the gutter
- 4 screws with washers. Tighten.

Slide the gutter backwards so that the hole on the link corresponds to the hole in the mechanism.

Install:
- the 2 screws, (screwed from the outside). Tighten
- the glass cover.
