Mechanism / Mechanical Cable Sun Roof, Replacement

Mechanism / mechanical cable sun roof, replacement

Note! The illustrations in this service information are used for different model years and / or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Caution! When replacing the mechanism / mechanical cable, both sides must be replaced.

Preparatory work

Remove:
- the sun roof. See Sun roof, replacing Sun Roof, Replacing
- the motor. See Motor sun roof, replacement Service and Repair
- the glass cover. See Glass sun roof, replacement Service and Repair
- the drainage channel. See Gutter sun roof, replacement Service and Repair.

Removing the mechanism / mechanical cable

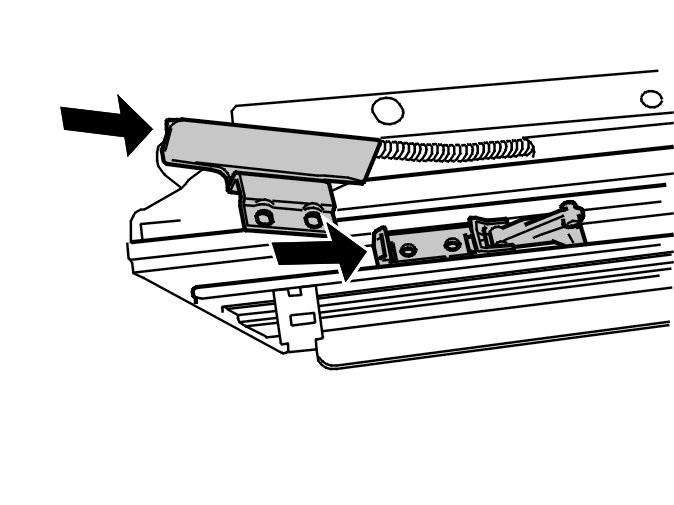

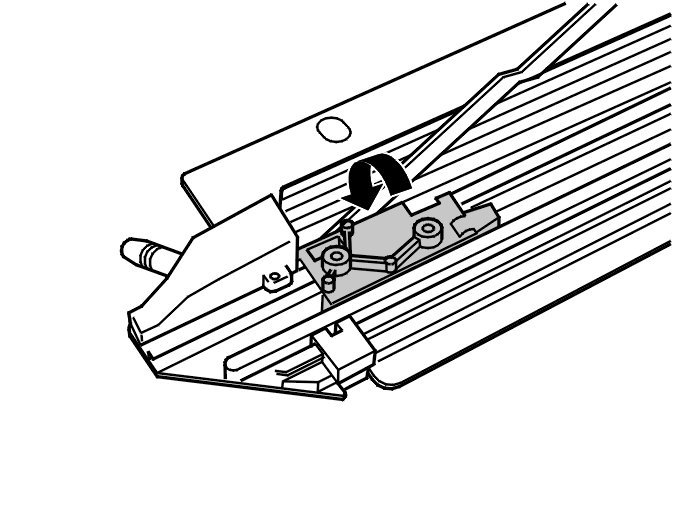

Angle the mechanism up.
Remove the screw.

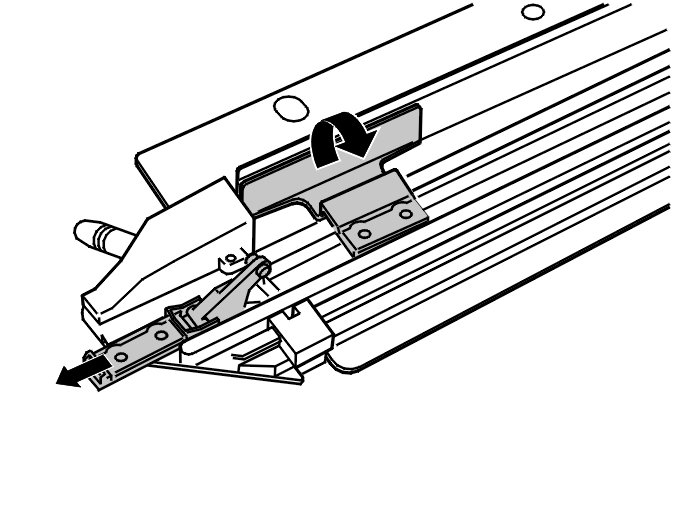

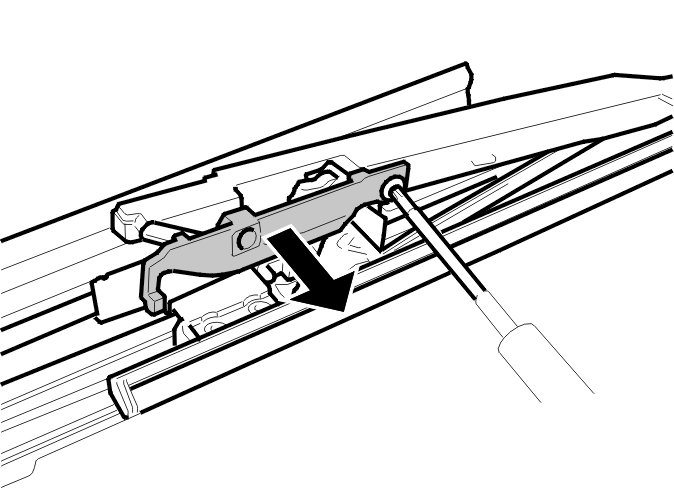

Pull the carriage as far back as possible.

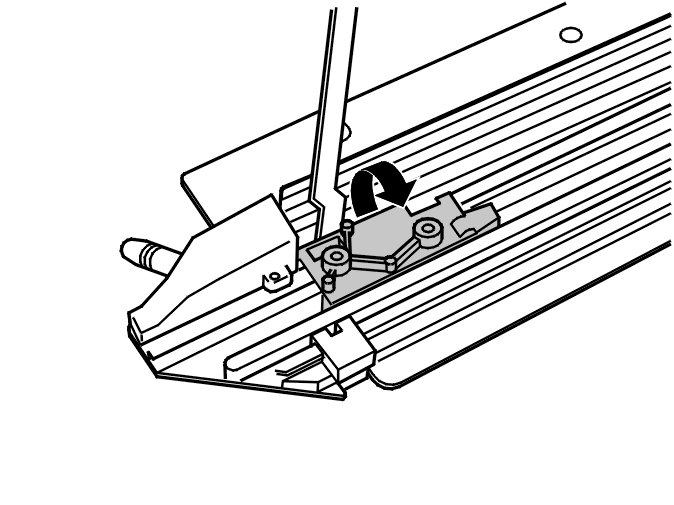

Remove the carriage from the slides.





Remove:
- the screw
- the bracket.

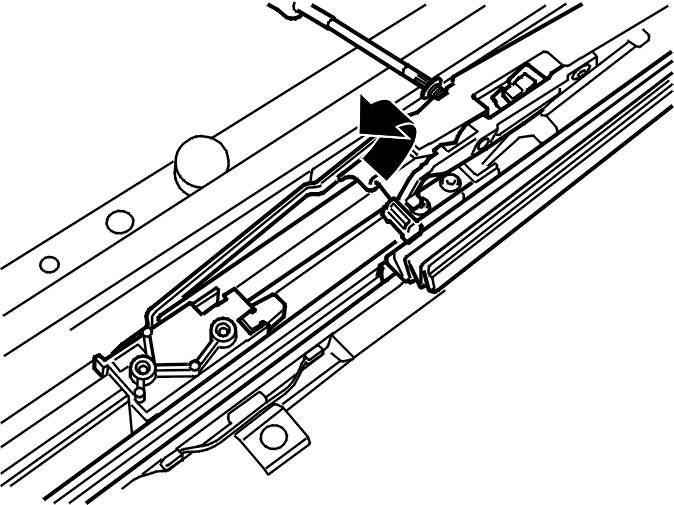

Note! Note the position of the locating pin for the drive plate against the bracket.

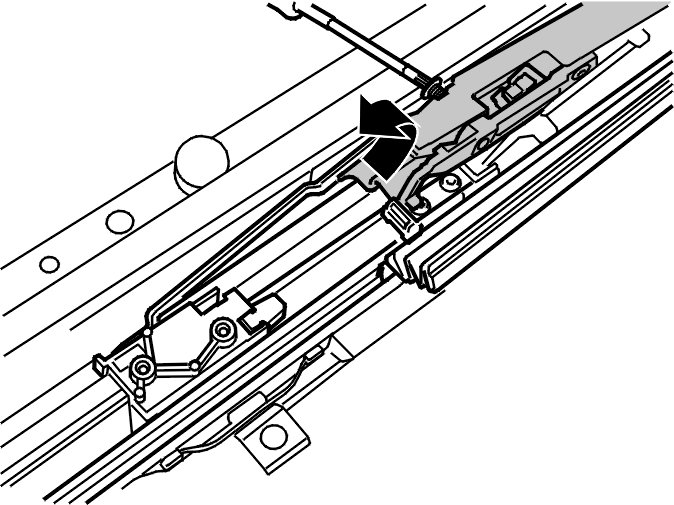

Note! Note the position of the locating pin for the drive plate against the mechanism.

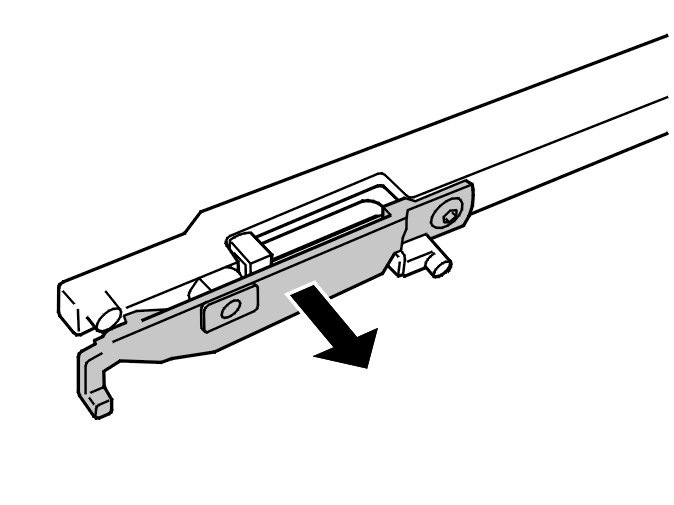

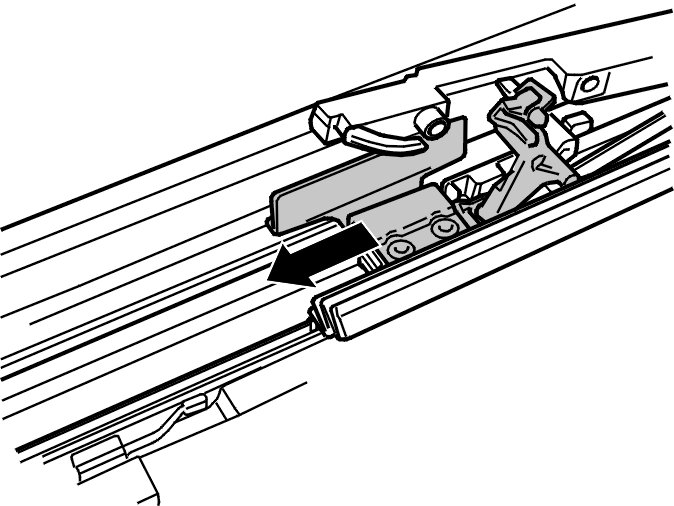

Pull the drive plate as far back as possible.

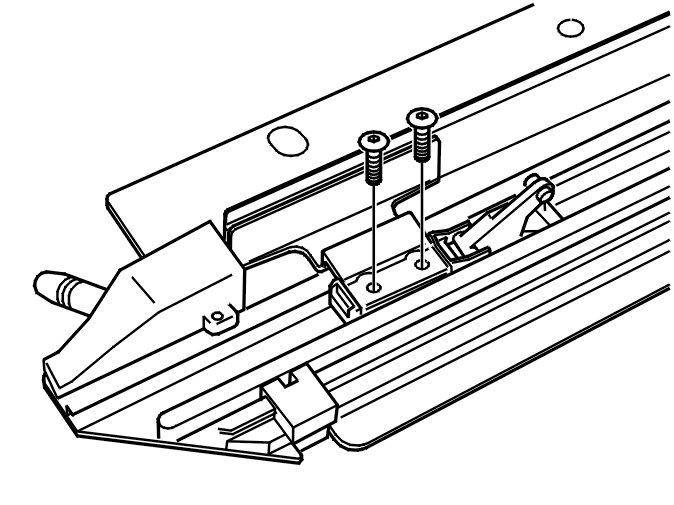

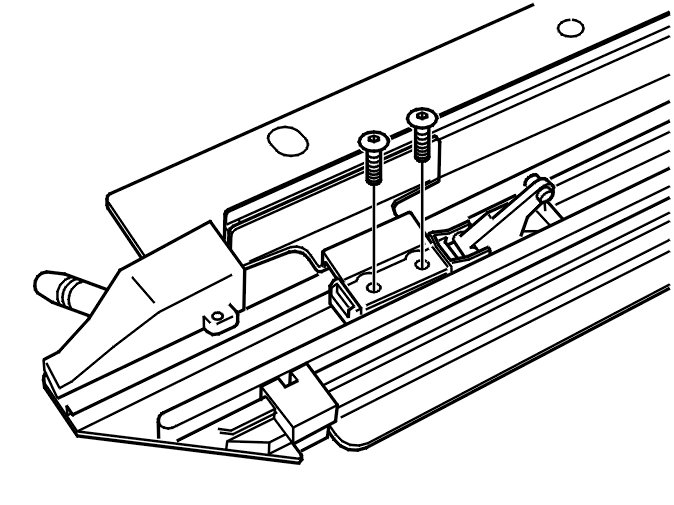

Remove the 2 screws.

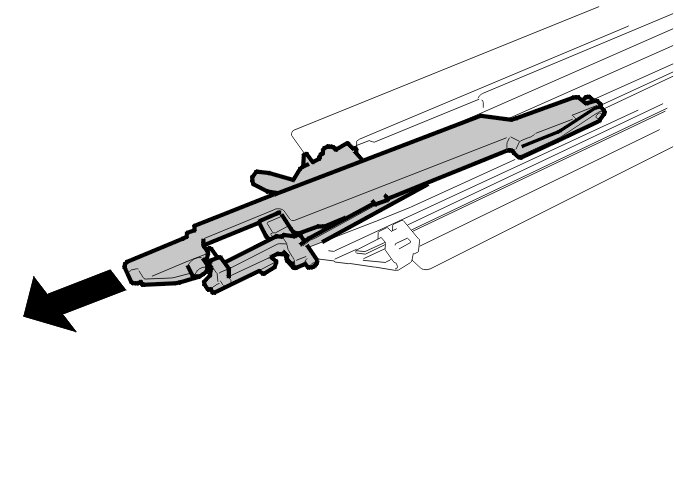

Pull the carriage out.

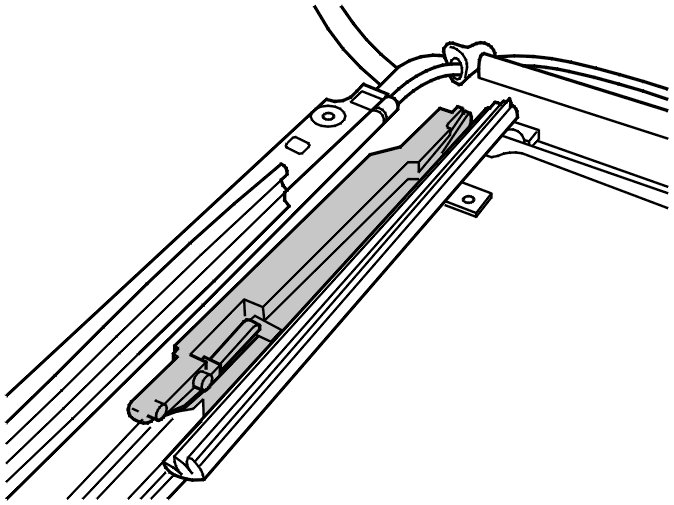

Angle up and pull out the mounting / mechanical cable.




Withdraw the mechanism.

Installing the mechanism / mechanical cable

Note! For tightening torques, see Tightening torque [1][2]Body and Frame.




Remove the bracket from the mechanism (applies to service kit).




Slide in the mechanism to the front position.




Remove the mounting / mechanical cable from the new drive plate (applies to service kit).




Slide the drive plate into the groove.
Slide in the mounting / mechanical cable.




Install the mounting / mechanical cable on the drive plate using the 2 M4 screws. Tighten.




Slide in the drive plate with the mounting / mechanical cable. Guide it in against the mechanism.




Install the bracket for the mechanism.

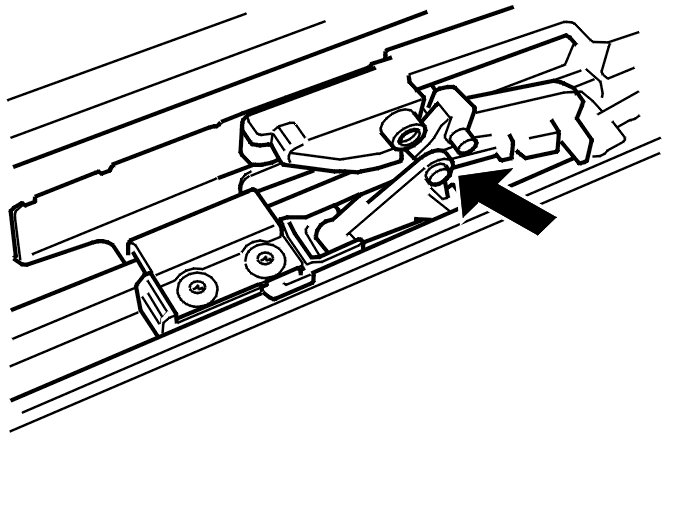

Note! Position the guide pin for the drive plate against the bracket. Use the 1 M4 screw. Tighten.




Angle in and press the mounting for the gutter into place.




Slide in the mounting for the gutter.
Install the link rod for the mechanism. Tighten the screw.

Finishing

Install:
- the motor. See Motor sun roof, replacement Service and Repair
- the drainage channel. See Gutter sun roof, replacement Service and Repair
- the sun roof. See Sun roof, replacing Sun Roof, Replacing
- the glass cover. See Glass sun roof, replacement Service and Repair.
Adjust. See Sun roof, adjusting Adjustments.
Check for leakage. See Sun roof, leak test Component Tests and General Diagnostics.
