Waste Paper Basket

Waste paper basket


















Waste paper basket

Preparations




- Remove the cover. Using a coin or similar, insert the coin in the groove. Carefully twist the cover loose.

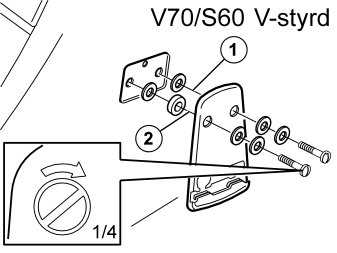

Installing the mounting

Illustration A is for left-hand drive cars





Illustration B is for right-hand drive cars





Position 1:

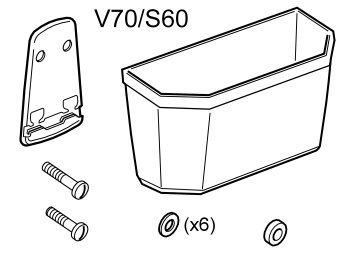

- Take the shorter screw and three thin washers from the kit
- Slide two thin washers onto the screw
- Slide the screw through the mounting
- Slide a thin washer onto the screw.

Position 2:
- Take the longer screw and the three thin and the slightly larger washers from the kit
- Slide two thin washers onto the screw
- Slide the screw through the mounting
- Slide the slightly larger washer and then the remaining thin washer onto the screw.

Finally:
- Secure the mounting in place. Tighten the screws a quarter turn.

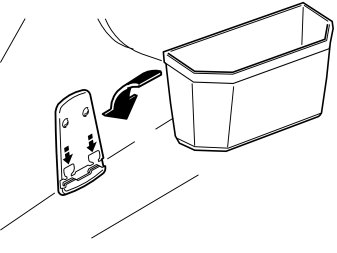

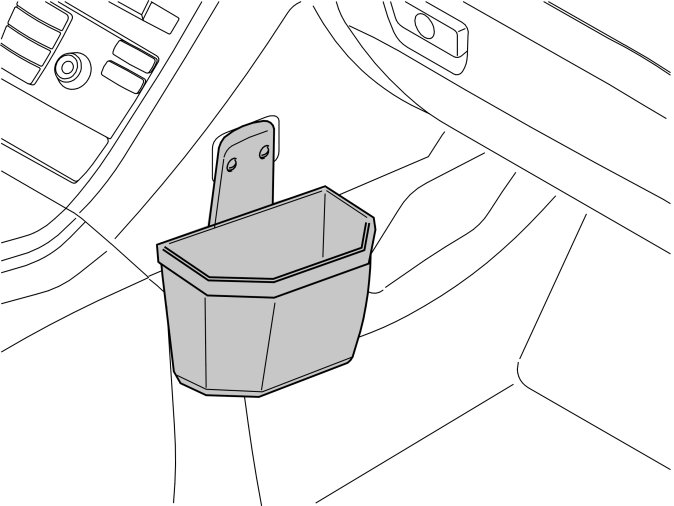

Installing the waste paper basket on the mounting




- Secure the waste paper basket on the mounting from above and down as illustrated.
