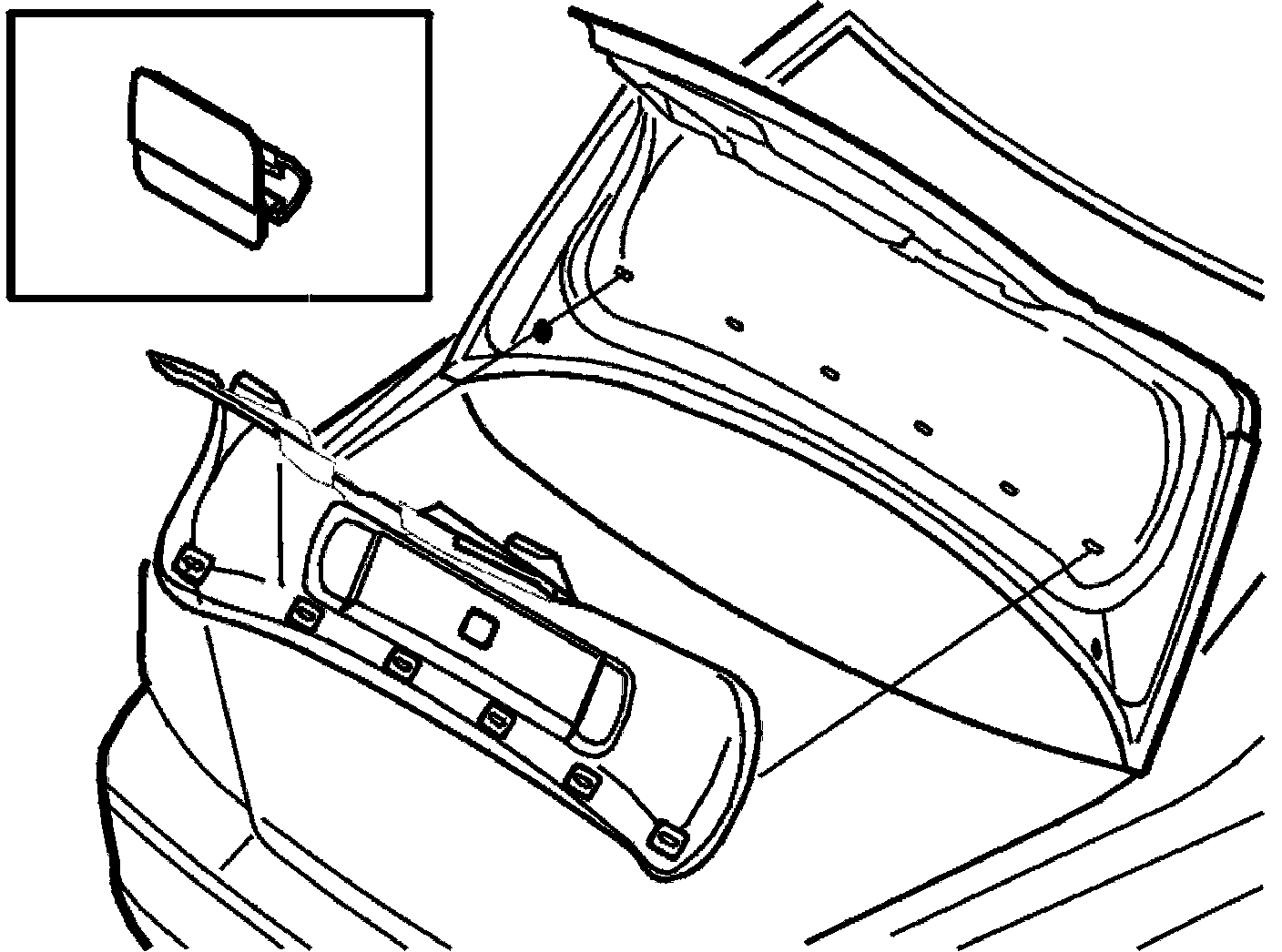

Panel, Trunk Lid, Replacing

Panel, Trunk Lid, Replacing
The panel is secured to the cover using clips

Remove:







- the warning triangle
- the clips (press in the heads)
- the panel.

Install:
Position the panel.
Press the clip into place.

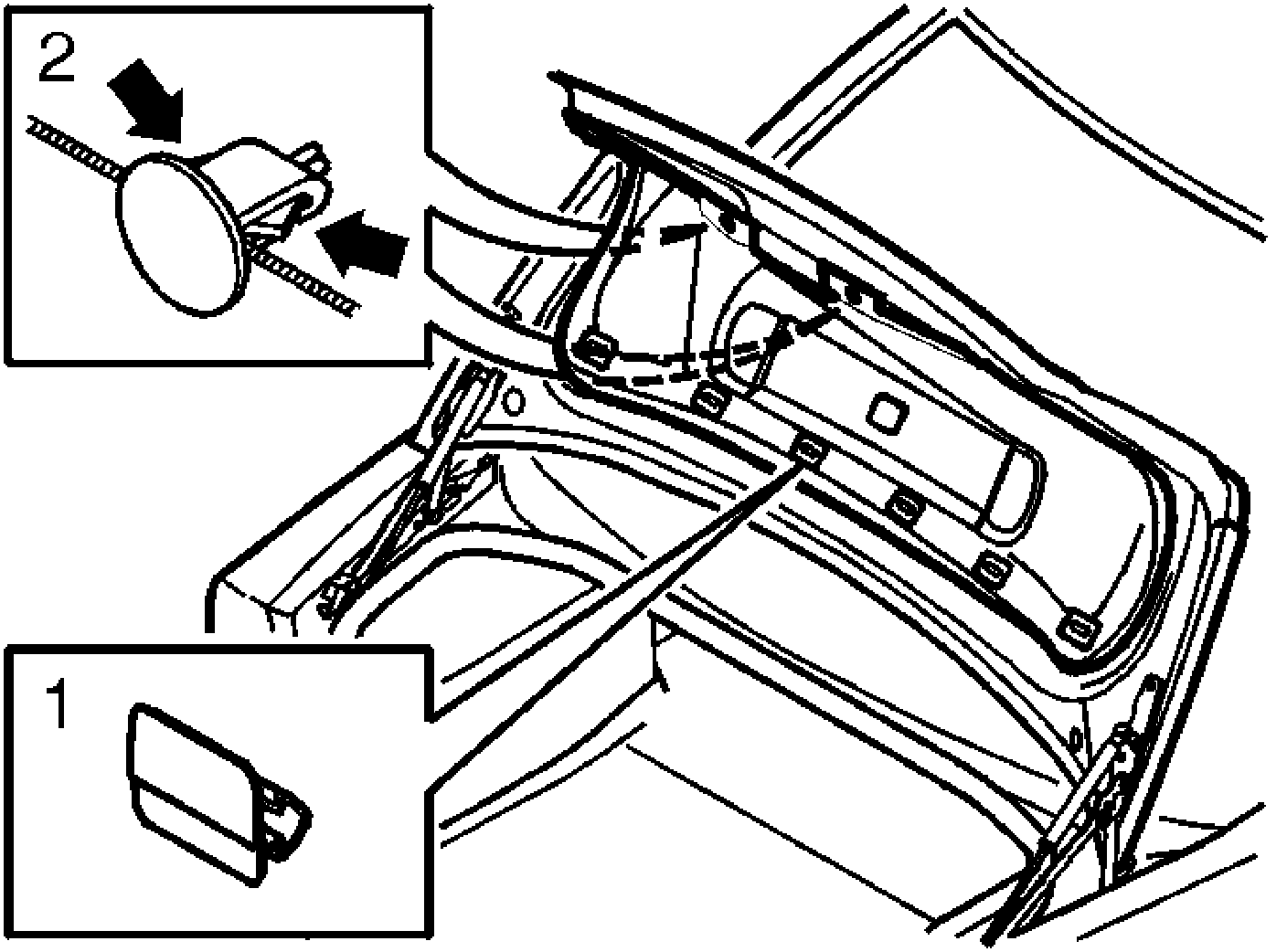

Panel, trunk lid, replacing

Remove:
- the warning triangle
- the clips (1).

Insert a hand between the panel and the tailgate. Release the clips (2).

Remove the panel.

Install:







- the clips (2)
- the clips (1)
- the warning triangle.
