Rear Sill Trim

Rear sill trim

Removing the sill trim

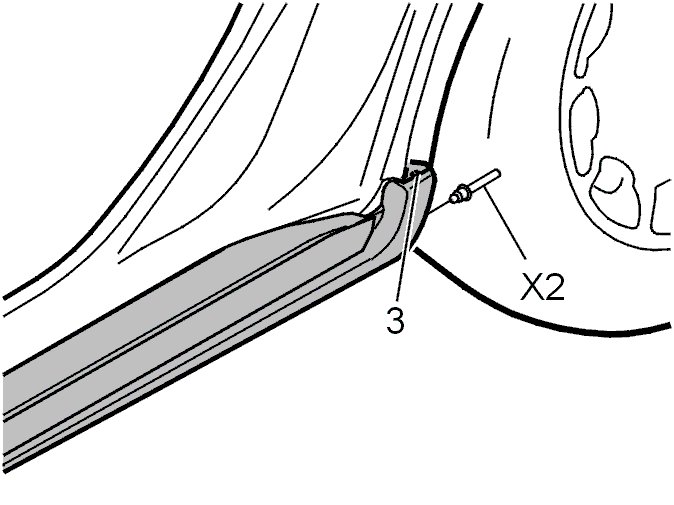

- Remove the rivet on the fender liner according to Removing rivet .

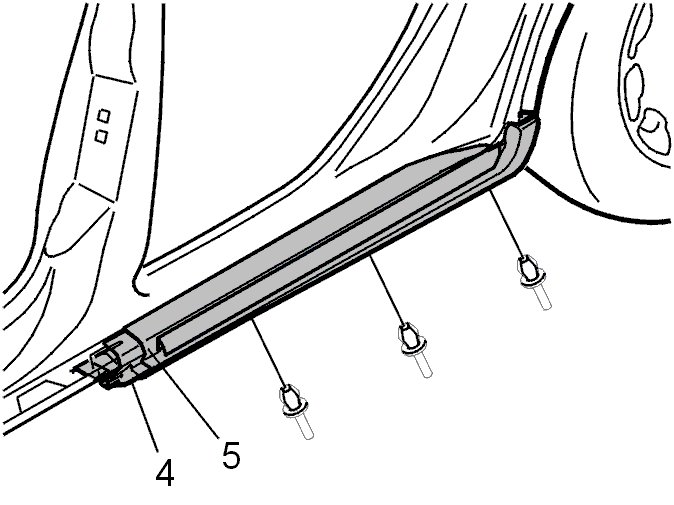

- Remove the three clips.
- Release the fasteners and press outwards.
- Remove the two clips from the door seal (4, 5). (4) is also for the front sill trim.
- Remove the lower rivet on the fender liner according to Removing rivet .




Remove the cover by pulling upwards at an angle and then forwards.

Installing the rear sill trim

Install:
In reverse order.

Hint: Heat the rear clip so that it flattens out. Otherwise the door sill will not align.
