Rear Door Sill Trim Panel

Rear door sill trim panel

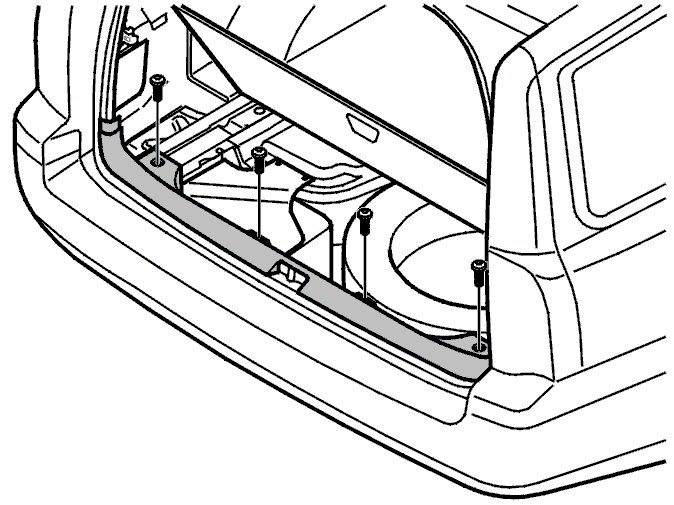

Removing the sill trim panel




Remove the side panel, opener, cantrail and D-post panel according to Panel, D-post, replacing , in the order specified. (Only one side needs to be removed)
- Open the rear floor hatch.
- Remove 4 screws.
- Pull straight upwards and angle out.

Installing the sill trim panel

Install:
In reverse order.
