Fuel Tank Filler Cover

Fuel tank filler cover

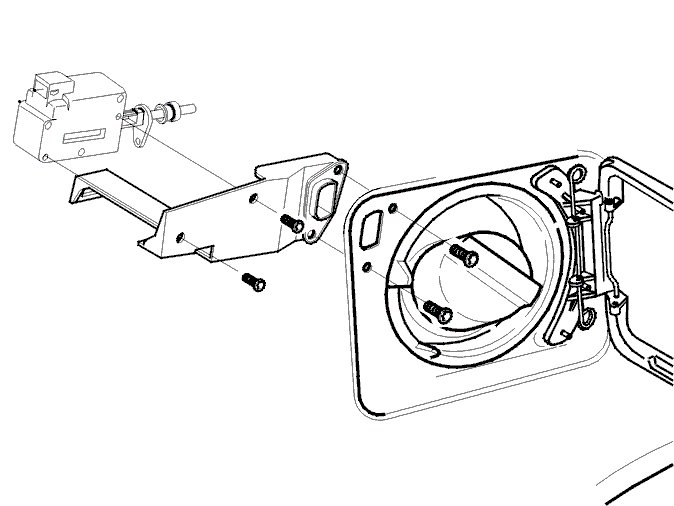

Replacing the fuel tank filler cover lock





Remove:
- the panel in the cargo compartment according to Side panel, cargo compartment, replacing Side Panel, Cargo Compartment, Replacing
- the connector
- two screws holding the bracket in the body
- two screws holding the lock unit in the bracket.

Install:
In reverse order.

Replacing the fuel tank filler cover hinges
Press the pin out from the hinge.
Pull off the hinge.

Install:
In reverse order.
