Handsfree, Entry Level

Handsfree, entry level




























Handsfree, entry level

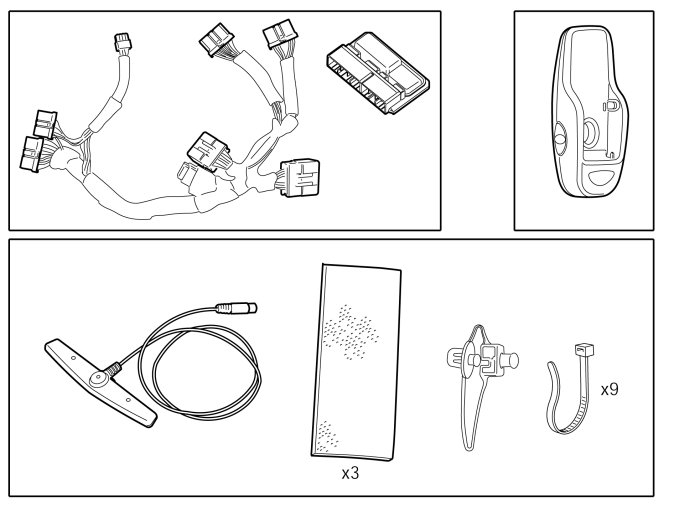

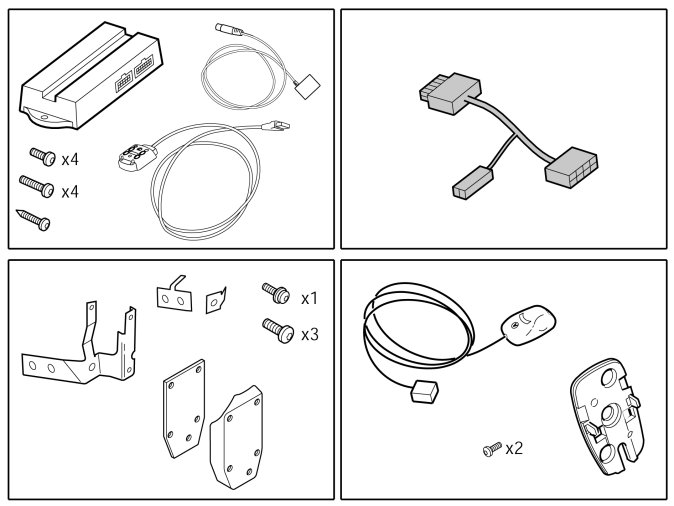

Note! These installation instructions apply to left-hand drive vehicles. When installing in a right-hand drive vehicle, the procedure is carried out on the opposite side and/or mirrored. (Where the operation differs, right-hand versions are also displayed with text and images.)

Note! During installation of the antenna, the windshield must maintain a temperature of at least +20° C (68° F).

Preparations




- Turn the ignition switch to position 0.
- Disconnect the battery negative lead.

Note! Wait at least three minutes before unplugging the connectors or removing other electrical equipment.

Illustration A applies to cars equipped with a center storage locker




- Carefully remove the storage locker surround. First pry up the surround using a weatherstrip tool.
- Remove the four screws around the storage locker. Place the locker to one side.

Illustration B applies to cars equipped with a centrally-mounted loudspeaker




- Carefully pry the loudspeaker grille up using a weatherstrip tool. Remove the loudspeaker grille.
- Remove the screws in the loudspeaker.
- Lift up the loudspeaker. Disconnect the connector.
- Place the loudspeaker to one side.

Illustration C applies to cars equipped with RTI




- Carefully remove the panel around the RTI display. Carefully prise around the panel using a weatherstrip tool.
- Remove the four screws in the holder for the display.
- Lift the entire RTI unit. Disconnect the connector for the display. Where applicable, also disconnect the connector for the centrally mounted loudspeaker.
- Place the complete unit to one side.




- Lock the steering wheel in the lowest, rearmost position.

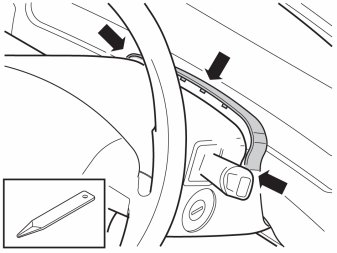

- Remove the rubber seal from the upper steering column cover by carefully prying off the hooks.




- Remove the combined instrument panel surround by carefully prying the lower edge so that the two clips release.
- Then pull the surround back until the three clips at the top edge release.

Note! Do not damage the dashboard.

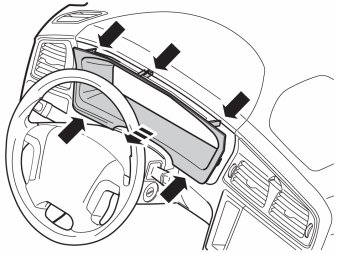

- Remove the four screws for the combined instrument panel.
- Pull out the combined instrument panel. Disconnect the connector on the reverse of the combined instrument panel.
- Place the combined instrument panel to one side.

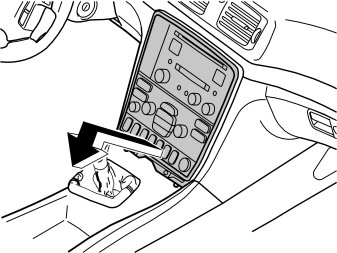

- Use a plastic weatherstrip tool and detach the gear selector cover panel with boot by carefully prying it off at the rear edge until the clips release. Pull the panel upwards until the four clips at the sides have released.




- Remove the panel around the gear selector. It is held in place with four catches.




- Turn the ignition key to position II.
- Engage the handbrake and move the gear selector lever towards the rear.

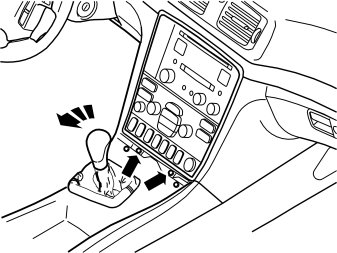

- Remove the two screws holding the bracket with the radio and dashboard environment panel in the center console.




- Remove the bracket with dashboard environment panel and the radio from the center console. Pull the lower edge out and downwards until it releases from the mounting at the upper edge. Then fold backwards.

Note! Do not damage the removed components or the surrounding panels.

- Unplug the connectors.
- If a 12 pin gray connector is not connected to the radio, the car is equipped with an external amplifier. (This information is used later in step 39.)

Installing the bracket




- Take the mounting plate and antenna cable from the kit.

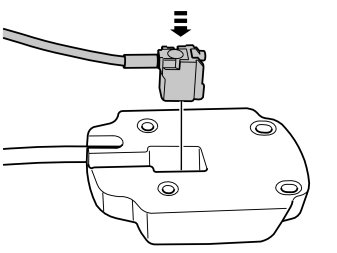

- Press in the aerial cable connector onto the rear of the mounting plate.

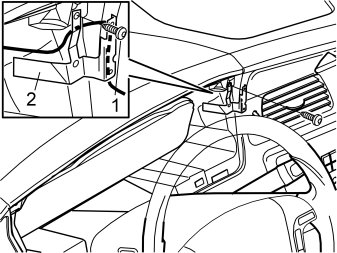

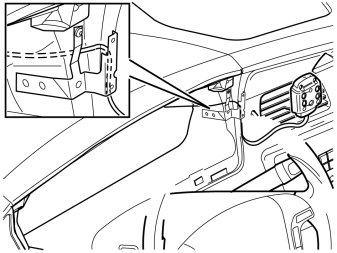

- Remove the screw (1) securing the semi-circular section of the dashboard above the combined instrument panel.
- Take the bracket (2) from the kit.
- Position the bracket with the cable routed on the reverse of the bracket as illustrated.
- Tighten the bracket using the screw (1) for the semi-circular section.
- Route the cables from the mounting plate through the hole behind the instrument panel.




- Press the bracket against the mating surfaces where the three holes are to be drilled.

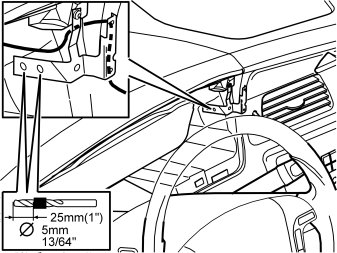

- Hold the bracket firmly in place. First drill the two marked holes through the bracket and the dashboard. Use a -5 mm (13/64") diameter drill bit. Use a 25 mm (1") diameter drill stop.




- Insert the bracing plate (1) through the hole in the dashboard.
- Secure the bracket (2) using two screws (3) from the kit while pressing the bracket against the mating surfaces.
- Tighten the screws so that the bracket is pressed into and is at the same level as the dashboard face.
- Drill out the last hole. Use a -5 mm (13/64") diameter drill bit.
- Insert the bracing plate (5) through the hole in the dashboard.
- Secure the bracket using a screw (4) from the kit.




- Mark out the hole for the cables for the handset holder and bracket on the surround for the combined instrument panel.
- File out a groove for the cables for the handset holder (1) in the combined instrument panel surround. File the hole so that it is large enough for any excess wiring to be routed through the hole and hidden on the inside of the dashboard.
- File out a groove for the installed bracket (2).
- Smooth off the edges of the groove.




- Route the cables from the mounting plate in the hole behind the combined instrument panel so that the handset holder can be positioned.

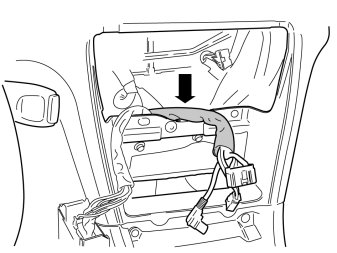

- Route the cables from the mounting plate through the hole behind the combined instrument panel in to the center console.

Installing the antenna

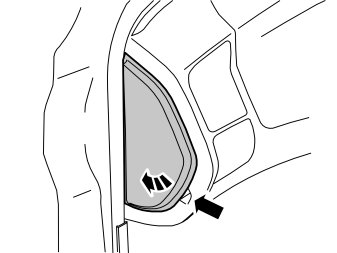

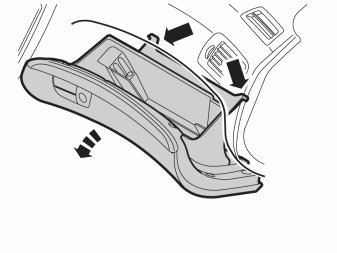

- Remove the panel on the end of the dashboard.

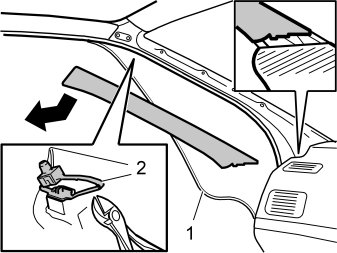

- Remove the weatherstrip (1) for the door at the A-pillar.
- Pull off the panel.
- Cut off the safety clip (2).
- Lift the panel up and inwards in the vehicle.

Note! Ensure that the guide lugs on the panel do not scratch the dashboard.

- Turn the safety clip a quarter turn. Remove the safety clip.

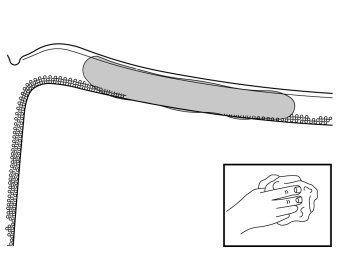

- Clean the inside of the windshield using isopropanol.




- Remove the protective film from the antenna and position as illustrated.

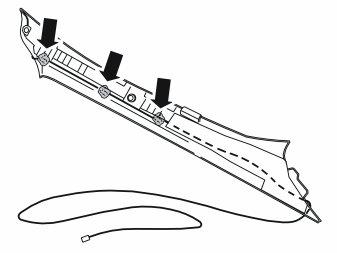

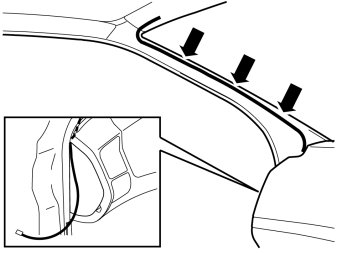

- Pull the antenna cable down along the A pillar towards the dashboard and out by the end.
- Secure the cable using three tie straps.

Warning! The inflatable curtain (IC) is located inside the A-pillar panel, it is important that the cable is not positioned on it.

Installing the microphone

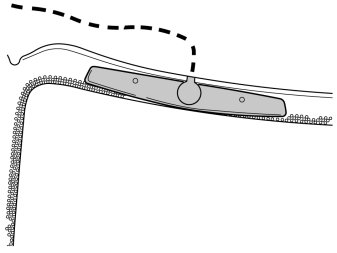

- Take the microphone's mounting plate from the kit. Position the mounting plate on the top end of the A pillar panel, parallel with the top edge. See the illustration. If the microphone is already installed in the mounting plate, remove it. It is secured by two hooks on the long sides.

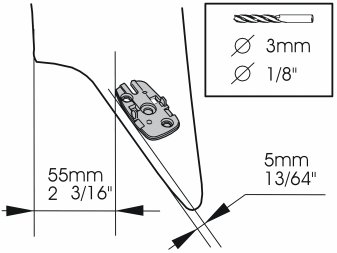

- Mark out and drill the holes for the mounting plate. Use a -3 mm (1/8") diameter drill bit.
- Remove any swarf.

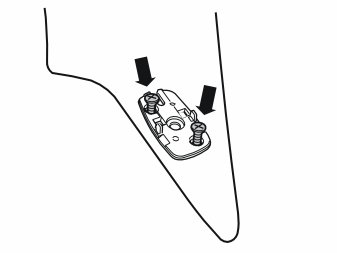

- Install the mounting plate on the A-post panel using two screws from the kit.

Warning! The inflatable curtain (IC) is located inside the A-post panel. It is important to file off the screws securing the mounting plate if necessary, so that they just fit through the panel.
- Check how much of the screws protrudes on the reverse. Unscrew the screws. File off the screws to the correct length.
- Reinstall the screws.

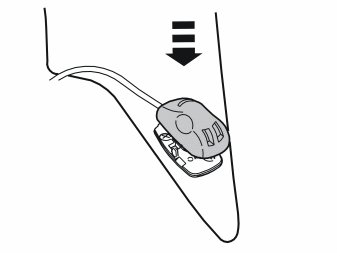

- Press the microphone from the kit into place on the mounting plate.




- Route the microphone cable on the inside of the A-post panel. Secure the cable using pieces of butyl tape.




- Install a new safety clip in the A pillar panel.

Note! It is important to use a new safety clip when installing.

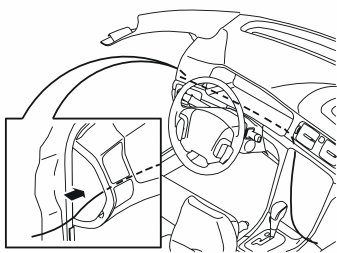

- Route the microphone cable so that it protrudes from the end of the dashboard.
- Press the A-pillar panel into place.
- Reinstall the weatherstrip in the door opening.

Warning! It is important to install the safety clip/hook and panel correctly so that the IC system is not affected.

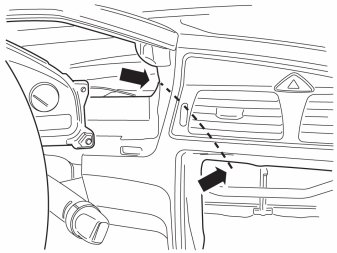

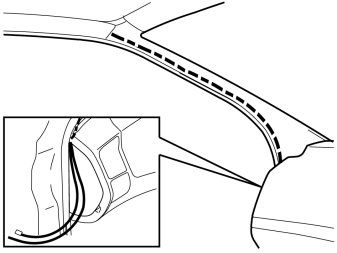

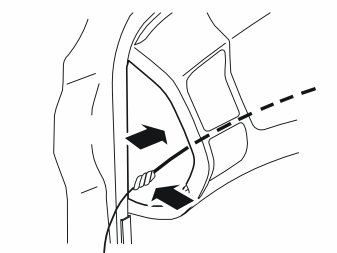

- Insert a curtain wire or similar into the end of the dashboard, through the compartment behind the combined instrument panel and into the center console.




- Tape the microphone cable and antenna cable at the curtain wire and pull the cables to the center console.
- Disconnect the cables from the curtain wire. Ensure that the microphone cable is positioned so that there is no risk of it catching or rubbing.
- Reinstall the end panel.
- Reinstall the combined instrument panel. Ensure that the cables are not trapped. The cables from the mounting plate must be above the combined instrument panel.
- Reinstall the combined instrument panel surround. At the same time locate the cable and the bracket in the cut outs.
- Reinstall the rubber seal in the upper steering column cover.

Installing the telephone holder

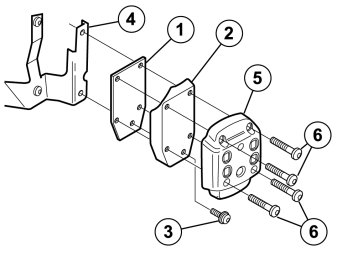

- Install the bracing plate (1) and the cover (2) on the bracket (4). Use the screw (3) from the kit. Do not tighten fully yet.
- Secure the handset holder mounting plate (5) using the screws (6) from the kit.
- Tighten the screw (3).
- Feed in any cable excess.

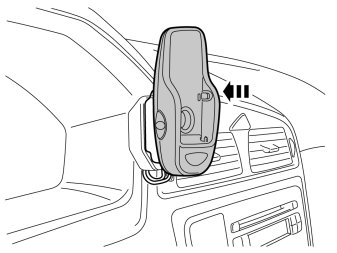

- Install the telephone holder on the mounting plate.

Connecting

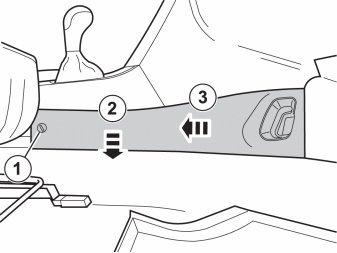

- Turn the clip (1) a quarter turn anti-clockwise.
- Pull the panel out by the rear edge.
- Then pull the panel backwards until the hooks release.
- Remove the panel.




- Remove the screws and sound proofing bracket.

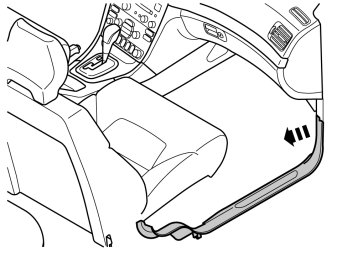

- Detach the sill trim panel at the front edge.




- Open the glovebox.

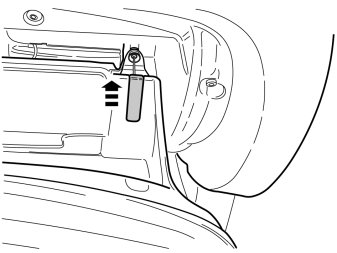

- Lift the two hooks on each side past the lugs.




- Unhook the damping.

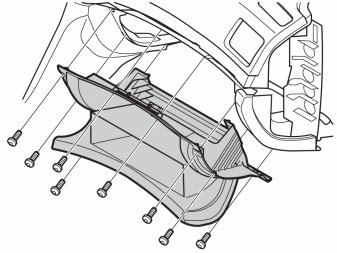

Remove:
- the eight screws
- the connector for the glove box lighting
- the connector for the glove box lighting
- the glove box.

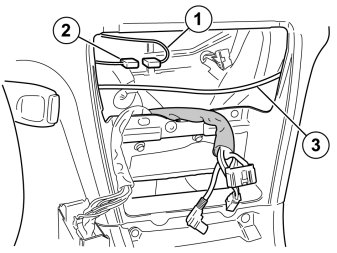

- Connect the antenna cable (1) to the short cable (2) from the telephone holder mounting plate. Pull the microphone cable (3) further towards the glove box.

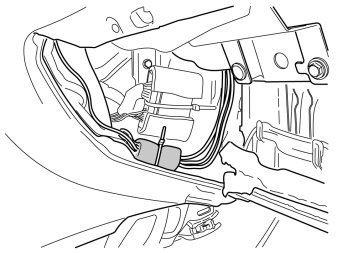

- Cut the protective casing approximately 120 mm on the car's cable harness (the one that the antenna cable for the radio is positioned in).

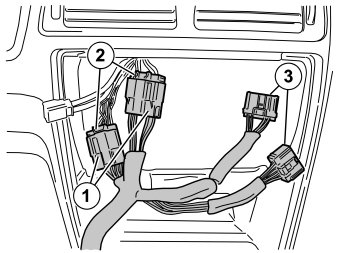

- Connect the adapter cable's green and gray connector (1) to the vehicle's cable harness (2).
- The connectors (3) are later connected to the radio.
- Position the connected gray connector up to the left and the green connector at the bottom in the middle so that they are not obstructive when installing the radio.

Applies to cars with external amplifier
- Take out the gray connector located up to the left in the center console.
- Remove the foam tape.
- Disconnect the connectors and connect the two gray adapter cable connectors.
- Reinstall the foam tape.

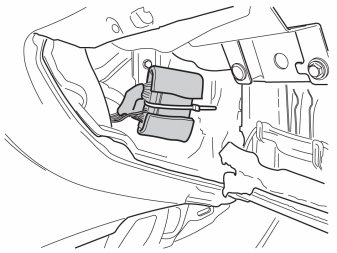

- Take the mute relay from the kit and connect the connectors.
- Tape a thick piece of foam tape around the relay and the connectors.




- Take a large tie strap from the kit and secure the relay to the bracket for the A/C unit.

Installing the control module

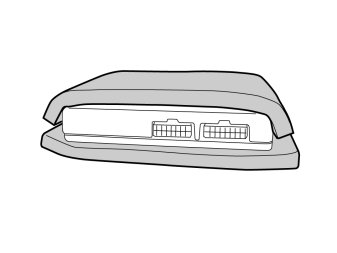

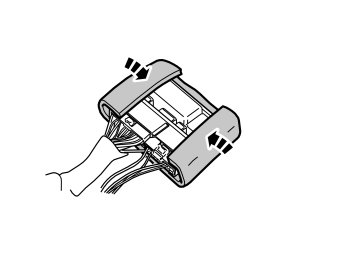

- Tape the two foam pieces of tape to the control module.

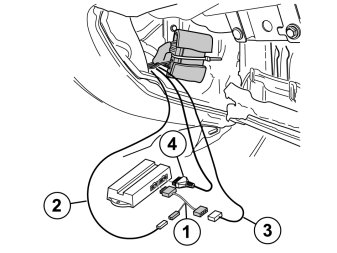

- Connect the connectors as illustrated.
- the adapter cable (1) to the control module
- the cable (2) from the microphone.
- the cable (3) from the power supply and mute relay.
- the cable (4) from the telephone holder.

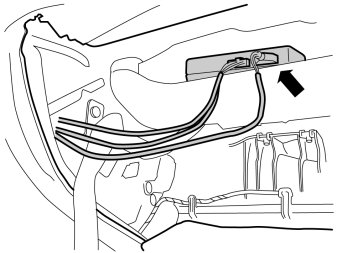

- Position the control module on top of the member.




- Take a tie strap from the kit and secure the excess cable to the inside of the center console.

Reinstall:
- the radio and dashboard environment panel
- the gear lever panel
- the dashboard end panel
- the glove box
- the sound barrier
- the side panel for the center console.




- Turn the ignition key to position II.
- Reconnect the battery negative lead
