Microphone Rear View Mirror, Replacing

Microphone Rear View Mirror, Replacing

Removing the microphone, rear view mirror

Remove:
- both the sun visors.
- the roof module

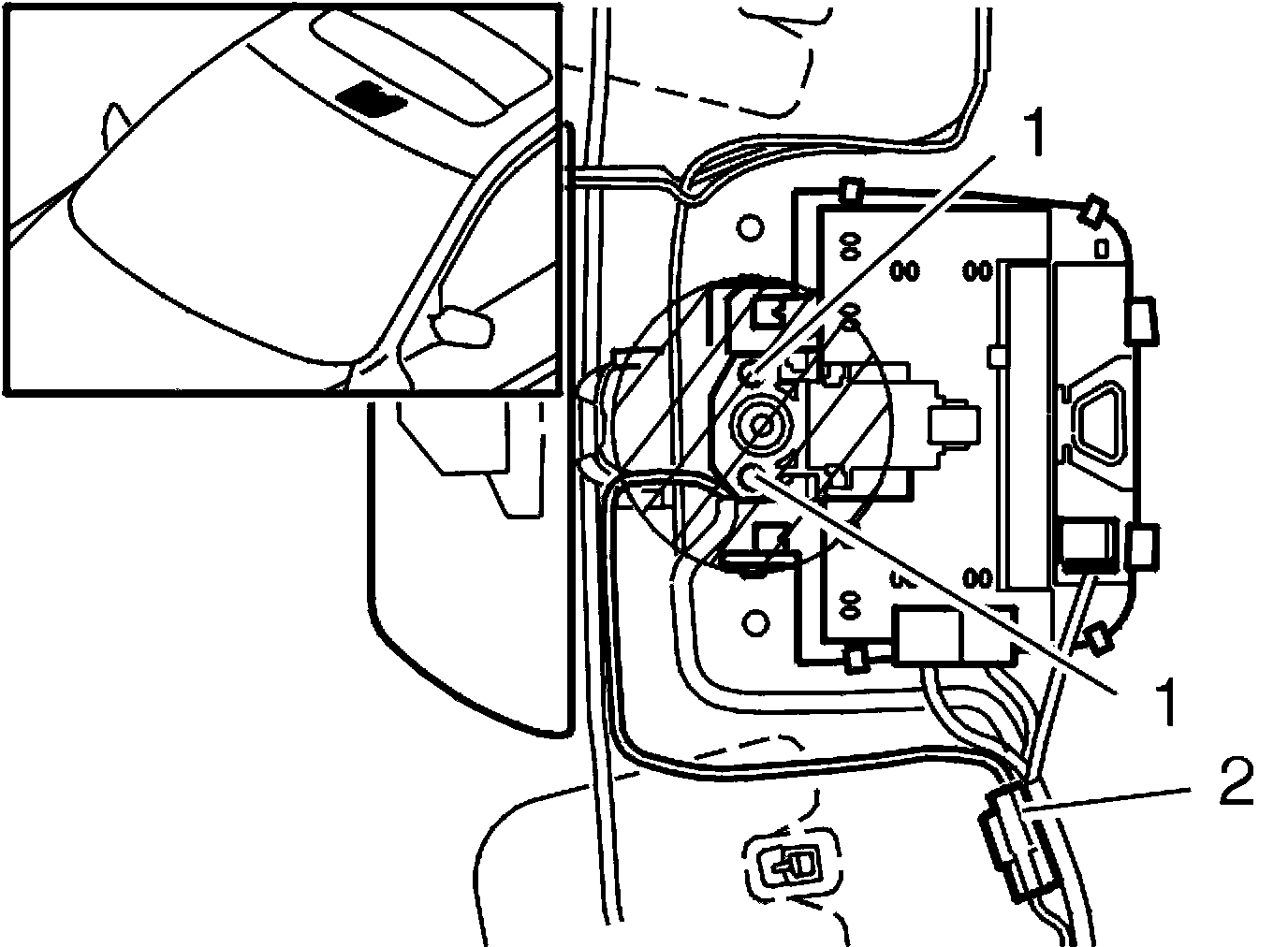

- the connector (2) on top of the headlining.

Remove:

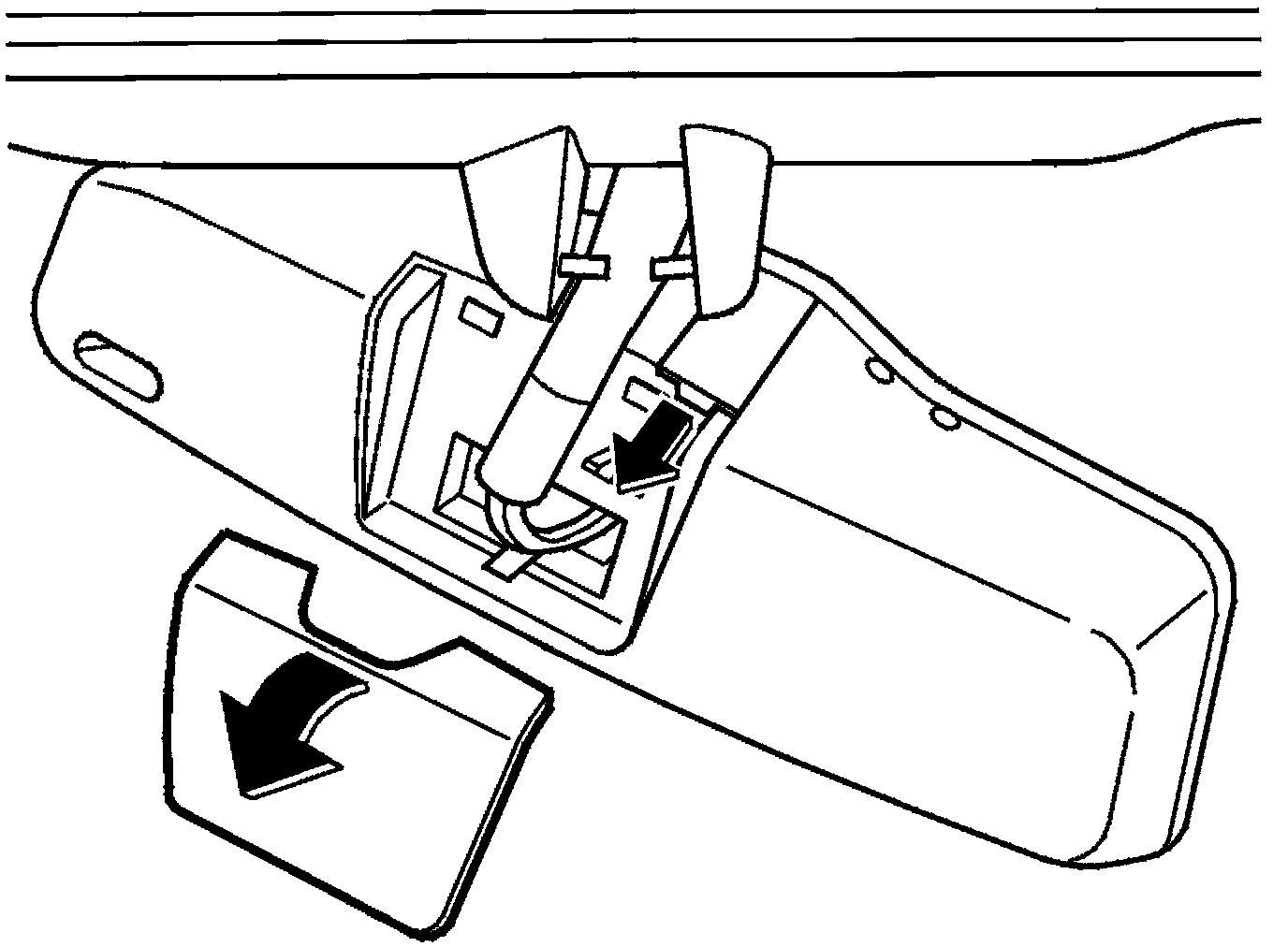

- the cover on the reverse of the mirror
- the spring.

Pull out the microphone.

Installing the microphone, rear view mirror

Install:







- the microphone
- the spring
- the cover
- the connector (2)
- the microphone cable.

CAUTION: Ensure that the microphone cable is not trapped. The risk areas (1) are marked on the illustration.

NOTE: Tape the microphone cable securely.

Up to and including 2001 week 34, the hands-free microphone is connected to the phone module (PHM via a connector in the left A-post and a connector in the roof.

From and including 2001 week 35, the hands-free microphone is connected to the phone module (PHM via a connector in the right A-post.

Install:
- the roof module
- the sun visors.
