Antenna Amplifier Bumper Rear, Replacing

Antenna amplifier bumper rear, replacing

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Preparatory work

Removing the side panel right-hand




Ignition off.
Remove the right-hand side panel in cargo compartment.

Removal

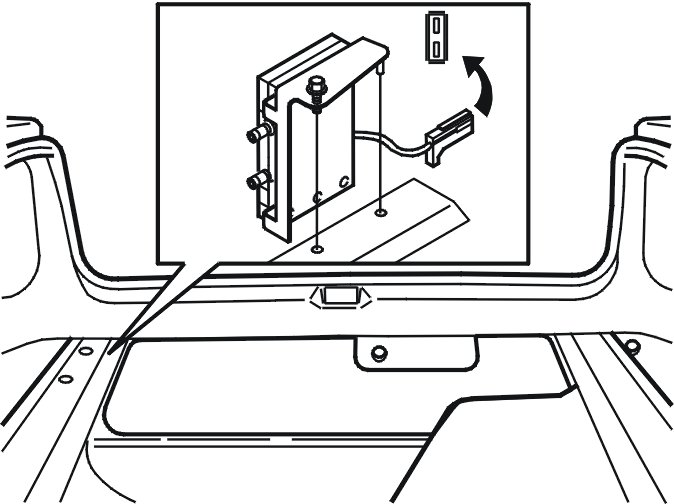

Removing the antenna amplifier





Remove:
- the 1 M6 screw
- antenna amplifier
- the 2 connectors.

Installation

Note! For tightening torques, see: Tightening torque [1][2]Specifications.

Installing the antenna amplifier

Install:
- the 2 connectors
- antenna amplifier
- 1 M6 screw.

Finishing

Installing the side panel right-hand
Install the right-hand side panel in the cargo compartment.
