Diagnostic Trouble Code (DTC) Information

Diagnostic trouble code (DTC) information

SWM-001B

Condition

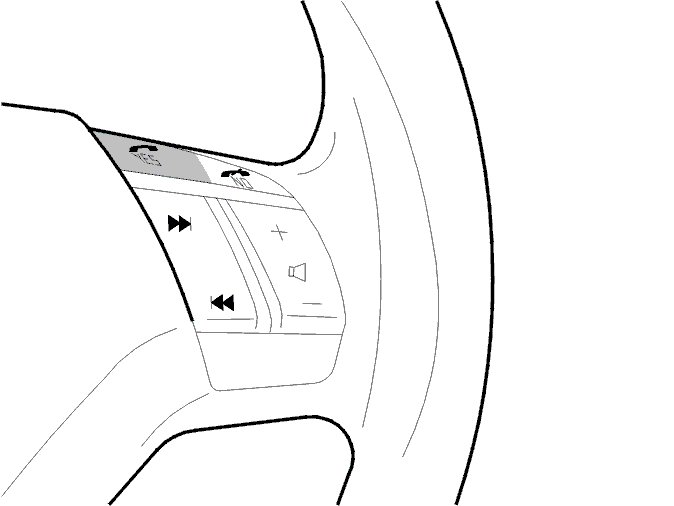

Diagnostic trouble code (DTC) SWM-001B is stored if the micro processor or steering wheel module registers that the YES switch is activated for more than 5 minutes.

Substitute value
None.

Possible source
- The YES switch is activated for more than 5 minutes.

Fault symptom[s]
- The carphone does not function.
