Signal Too High

Signal too high

Checking the wiring and component

Warning! Before fault-tracing can begin, the engine cooling fan (FC) connector must be disconnected to prevent the engine cooling fan (FC) engaging. Diagnostic trouble code (DTC) ECM-6110 Engine cooling fan (FC) low-speed signal may be stored. After fault-tracing the connectormustbe reconnected.




- Ignition off.

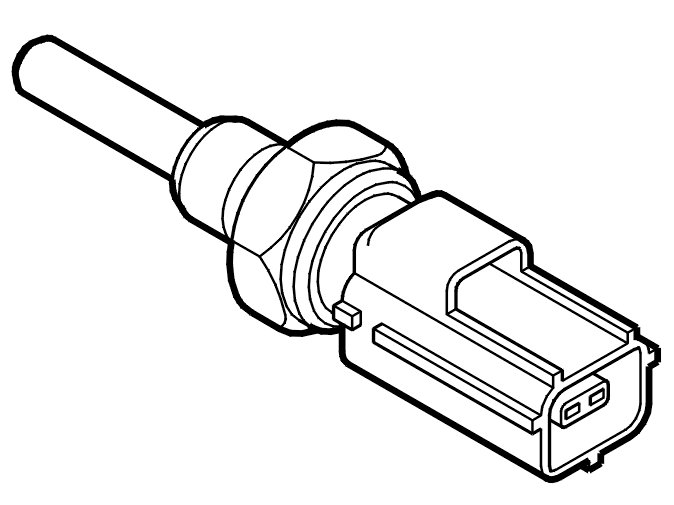

Check the resistance of the engine coolant temperature (ECT) sensor between terminals #1 and #2 (component side).
Check the signal cable between control module terminal #A4 (#A4) and engine coolant temperature (ECT) sensor terminal #1. Check for a short-circuit to ground.
If no faults are found and the fault is permanent, replace the engine coolant temperature (ECT) sensor.
Remedy as necessary.

Other information:
- To connect the breakout box / access the control module, see Connecting the breakout box, B5244T5, B5254T2 Connecting the Breakout Box
- To access the engine coolant temperature (ECT) sensor, see Temperature sensor engine coolant, replacing Service and Repair
- For resistance values, see Component specifications Specifications
- For information about signals, see Signal specification Signal Description / Specification
- Checking wiring and terminals Checking Wiring And Terminals.














Continue - Verification

-------------------------------------------------

Verification




Verification

Hint: After carrying out the repair, check that the fault has been remedied.








- Ignition off
- Reconnect connectors, reinstall components etc.
- Ignition on
- Read off the engine coolant temperature (ECT) sensor.





Is the temperature within its permitted range?

Yes - VERIFIED

No - VERIFICATION FAILED

------------------------

VERIFICATION FAILED - Fault-tracing information

VERIFIED - Fault Found

-------------------------------------------------

Fault-tracing information




Information

Fault-tracing information
The fault should have been detected and remedied. As this is not the case fault-tracing has failed.
Exit fault-tracing for this diagnostic trouble code (DTC) or make another attempt.

Do you want to exit fault-tracing?

Yes - FAULT-TRACING FAILED

No - Attempt New Test

------------------------

FAULT-TRACING FAILED - FAULT-TRACING FAILED

Attempt New Test - Checking the wiring and component

-------------------------------------------------
