SAS-0041

SAS 0041 Steering Wheel Angle Sensor (Internal fault)

Condition

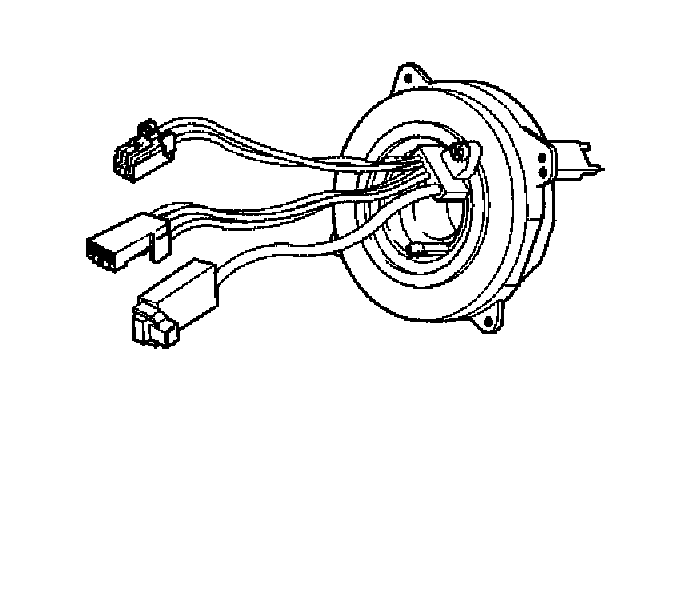

If the Steering Wheel Angle Sensor (SAS) control unit registers that the steering wheel angle from the steering wheel angle sensor exceeds 700° in any direction, diagnostic trouble code SAS-0041 is set.

Substitute value
- Stabilizing function disconnected.
- Anti-spin function blocked.

Possible Source
- Steering wheel angle sensor incorrectly adjusted.

Fault symptom[s]
- Anti-spin warning lamp is on.
- Stabilizing function not working.
- Anti-spin does not work.
