SAS-0019

SAS 0019 Control Unit (Internal fault)

Condition





The control units communicate with each other via a standardized serial method of communication - CAN (Controller Area Network) to exchange information. Control units send and receive information. If the steering wheel angle sensor (SAS) control unit registers an internal fault, diagnostic trouble code SAS-0019 is set.

Substitute value
- Stabilizing function disconnected.
- Anti-spin function blocked.

Possible Source

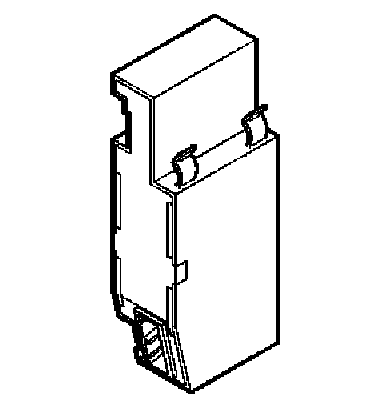

- Internal fault in the steering wheel angle sensor control unit.

Fault symptom[s]
- Anti-spin warning lamp is on.
- Stabilizing function not working.
- Anti-spin does not work.
