BCM-0118

BCM 0118 Power Supply for the Active Yaw Control (Voltage too high)

Condition





Note: The Diagnostic Trouble Code (DTC) applies only to cars with Dynamic Stability and Traction Control (DSTC).

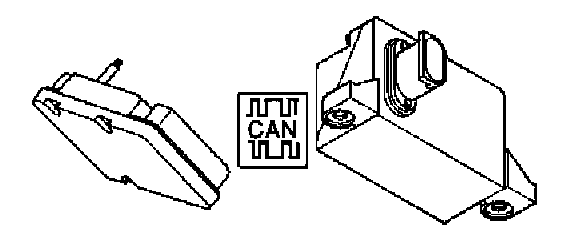

Diagnostic Trouble Code (DTC) BCM-0118 is stored if the Brake Control Module (BCM) registers that the power supply from the active yaw control sensor exceeds 17 V.

Substitute value
- Traction control is blocked
- Stability control is blocked
- Active yaw control is blocked.

Hint: For information about abbreviations, see Brake system abbreviations.

Possible Source
- Short-circuit to supply voltage in the power supply cable
- Internal fault in the active yaw control sensor.

Fault symptom[s]
- The anti-spin warning lamp is lit (up to and including 2002 model year)
- General yellow warning lamp lit (from model year 2003 inclusive)
- Anti-spin does not function
- The stability control system does not function
- The traction control system does not function.
