BCM-0113

BCM 0113 Back-Up (reversing) Signal (Signal missing)

Condition





Note: The Diagnostic Trouble Code (DTC) applies only to cars with Dynamic Stability and Traction Control (DSTC).

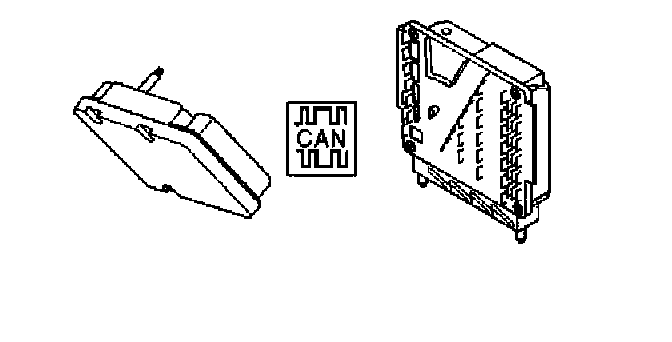

The brake control module receives a signal from the central electronic module (manual transmissions) or from the transmission control module (TOM) (automatic transmission) with information about the selected gear. If back-up (reverse) gear is selected, the stability function cannot be activated. Diagnostic Trouble Code (DTC) BCM-0113 is stored if the brake control module registers that the signal is distorted, missing or receives a signal indicating that back-up (reverse) gear is selected when the car is being driven forward for more than one second. The Diagnostic Trouble Code (DTC) can be diagnosed when speed exceeds 40 km/h and the vehicle is driven straight ahead followed by a turn.

Substitute value
- None.

Possible Source
- Open-circuit or short-circuit in the circuit for the back-up (reversing) lamp switch (manual transmission)
- Interference in the Control Area Network (CAN)
- Short-circuit or open-circuit on the Control Area Network (CAN).

Fault symptom[s]
- None.
