BCM-0112

BCM 0112 Active Yaw Control Sensor (Sensor not calibrated)

Condition





Note: The Diagnostic Trouble Code (DTC) applies only to cars with Dynamic Stability And Traction Control (DSTC).

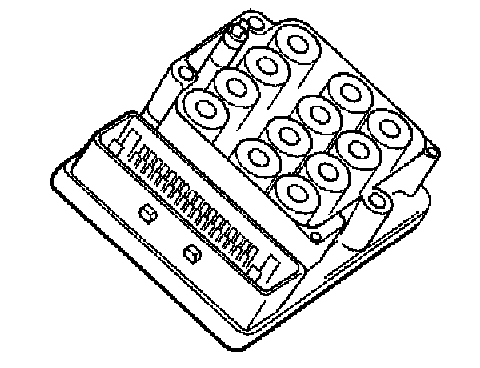

When calibrating the sensors included in the stability function (active yaw control), a check sum is controlled in the Brake Control Module (BCM). At start up, the control module checks the stored check sum against a calculated check sum. Diagnostic Trouble Code (DTC) BCM-0112 is stored if the check sums do not correspond. The Diagnostic Trouble Code (DTC) can be diagnosed while the ignition is switched on.

Substitute value
- Traction control is blocked
- Stability control is blocked
- Active yaw control is blocked.

Hint: For information about abbreviations, see Brake system abbreviations.

Possible Source
- Defective control module.

Fault symptom[s]
- The anti-spin warning lamp is lit (up to and including 2002 model year)
- General yellow warning lamp lit (from model year 2003 inclusive)
- Anti-spin does not function
- The stability control system does not function
- The traction control system does not function.
